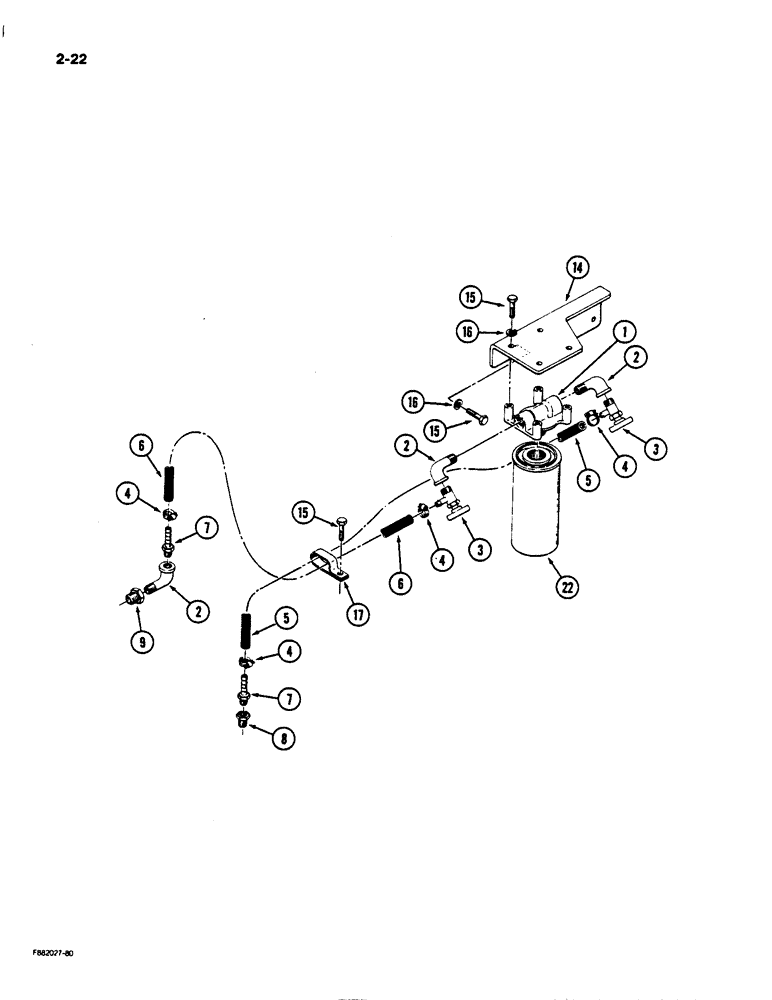

Запчасти Case IH 9170 (2-22) - WATER FILTER AND MOUNTING, 3306 ENGINE (02) - ENGINE

1

A152821

HEAD

HOUSING - water-filler

1шт.

2

31-219

ELBOW

- 90 degree, 3/8 NPT x 3/8 inch NPT

2шт.

3

1-1610

VALVE

- shut off

2шт.

4

32-29

HOSE CLAMP

CLAMP - hose, 7/16 to 3/4 inch

5шт.

5

31-2308

HOSE,0.38" ID x 48.00"

Coolant 0.38" ID x 48.00"

1шт.

6

31-2308

HOSE,0.38" ID x 48.00"

Coolant 0.38" ID x 48.00"

1шт.

7

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

CONNECTOR - straight, 3/8 x 3/8 inch NPT

2шт.

8

31-178

BUSHING

CONNECTOR - straight, 3/8 NPT x 1/2 inch NPT

1шт.

9

31-351

BUSHING

CONNECTOR - straight, 3/8 NPT x 3/4 inch NPT

1шт.

14

90-3857T1

BRACKET

- mounting, filter housing

1шт.

15

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

7шт.

16

19-117

LOCK WASHER,3/8"

3/8"

6шт.

17

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon (Not shown)

2шт.

22

28-31

FILTER

- coolant conditioner

1шт.

Use the precharged filter element only when the cooling system has been flushed or drained and new coolant added.

1шт.

22

1-7834

FILTER

- coolant conditioner, precharged

1шт.

Use the precharged filter element only when the cooling system has been flushed or drained and new coolant added.

1шт.
