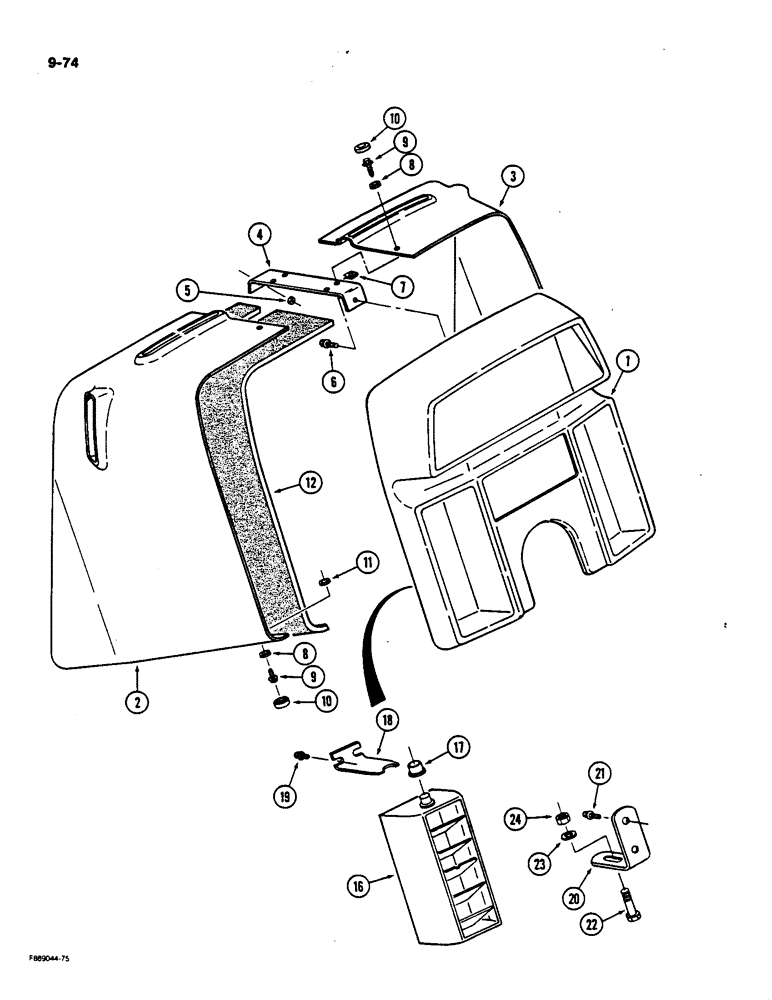

Запчасти Case IH 9170 (9-074) - INSTRUMENT PANEL, CAB (09) - CHASSIS/ATTACHMENTS

1

60-5966T1

PANEL, INSTRUMENTS

COVER - instrument panel, gray

1шт.

2

60-5963T1

PANEL, SIDE

PANEL - dash, left, gray

1шт.

3

60-5964T1

PANEL, SIDE

PANEL - dash, right, gray

1шт.

4

60-4122T1

SUPPORT

STRAP - support, dash panel

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

BOLT - hex, flanged head, 1/4 NC x 1-1/4 inch

1шт.

7

19-6119

STEEL SHEET NUT

NUT - clip, U-type, No. 10 NC

4шт.

8

1-8674

CAP WASHER

- trim cap

8шт.

9

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

SCREW, SELF TAPPING, Hex Hd, #10 x 1 1/4"

8шт.

10

60-5920T1

CAP

- trim, gray

8шт.

11

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

1шт.

12

60-4782T1

FOAM

PAD - dash insulation

2шт.

16

60-2008T1

DIFFUSER

LOUVER - air deflecting

2шт.

17

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

BEARING - louver pivot

4шт.

18

60-4019T1

ANCHOR

CLIP - louver retaining

4шт.

19

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - tapping, flanged head, No. 8 x 5/8 inch

8шт.

20

60-4020T1

SUPPORT

MOUNT - lower dash

2шт.

21

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

BOLT - flanged, 1/4 NC x 1/2 inch

4шт.

22

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

23

19-109

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

2шт.

24

19-82

LOCK NUT

- lock, 1/2 inch NC

2шт.
