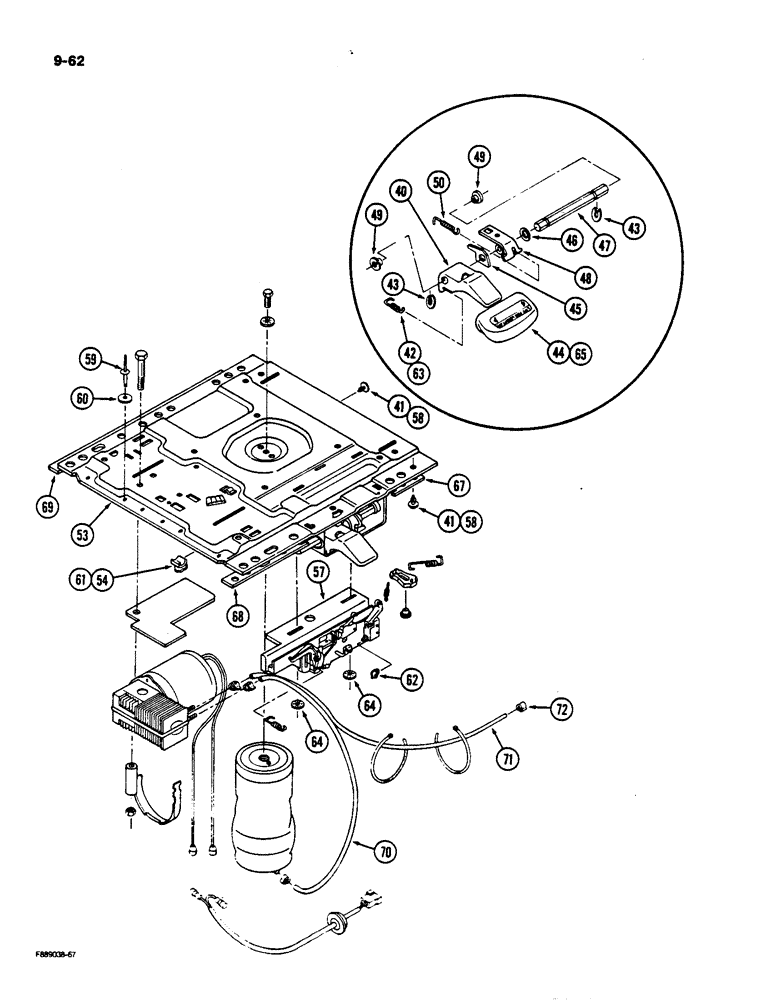

Запчасти Case IH 9170 (9-061) - SEAT, AIR SUSPENSION, CAB (CONTD) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
60-4890T91
SLIDE
CARRIER ASSEMBLY - seat adjust, Includes: Ref. 40 - 50
1шт.
40
NSS
NOT SOLD SEPARAT
LEVER - seat adjustment
1шт.
41
60-1613T1
FASTENER
- snap, boot
12шт.
42
60-4883T1
SPRING
- carrier return
1шт.
43
40-1157
RING
- retaining, M7
2шт.
44
60-4884T1
HANDLE
- raise and lower
1шт.
45
NSS
NOT SOLD SEPARAT
RATCHET
1шт.
46
60-4892T1
WASHER
1шт.
47
NSS
NOT SOLD SEPARAT
SHAFT - pivot
1шт.
48
NSS
NOT SOLD SEPARAT
ANGLE
1шт.
49
60-4887T1
FLANGED BEARING
BEARING, Flanged
2шт.
50
60-4891T1
SPRING
- return
1шт.
53
60-4877T91
SEAT
MOUNT - upper seat, Includes: Ref. 54
1шт.
54
60-4881T1
CLIP,ELECTRICAL
CLIP - cable retaining
2шт.
60-4894T92
SUPPORT
MOUNT ASSEMBLY - slide bar, Includes: Ref. 57 - 65
1шт.
57
NSS
NOT SOLD SEPARAT
MOUNT - slide bar
1шт.
58
60-1613T1
FASTENER
- snap, boot
12шт.
59
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 x 1/4 inch
1шт.
60
19-699
WASHER,3/16"
- flat, 3/16 x 1/2 x 3/64 inch
1шт.
61
60-4881T1
CLIP,ELECTRICAL
CLIP - cable retaining
2шт.
62
60-4895T1
CLAMP
- hose
1шт.
63
60-4883T1
SPRING
- carrier return
1шт.
64
60-4882T1
RING, SNAP
RETAINER - push-on
2шт.
65
60-4884T1
HANDLE
- raise and lower
1шт.
67
60-4913T1
PLATE
STRIP - backup, boot
1шт.
68
60-4912T1
PLATE
STRIP - backup, boot
1шт.
69
60-1632T1
PLATE
STRIP - backup, boot
1шт.
70
60-4898T1
HOSE,450.00 mm
1шт.
71
60-4899T1
HOSE
- 650 mm
1шт.
72
60-4895T1
CLAMP
- hose
1шт.
Выбрано товаров: 30
