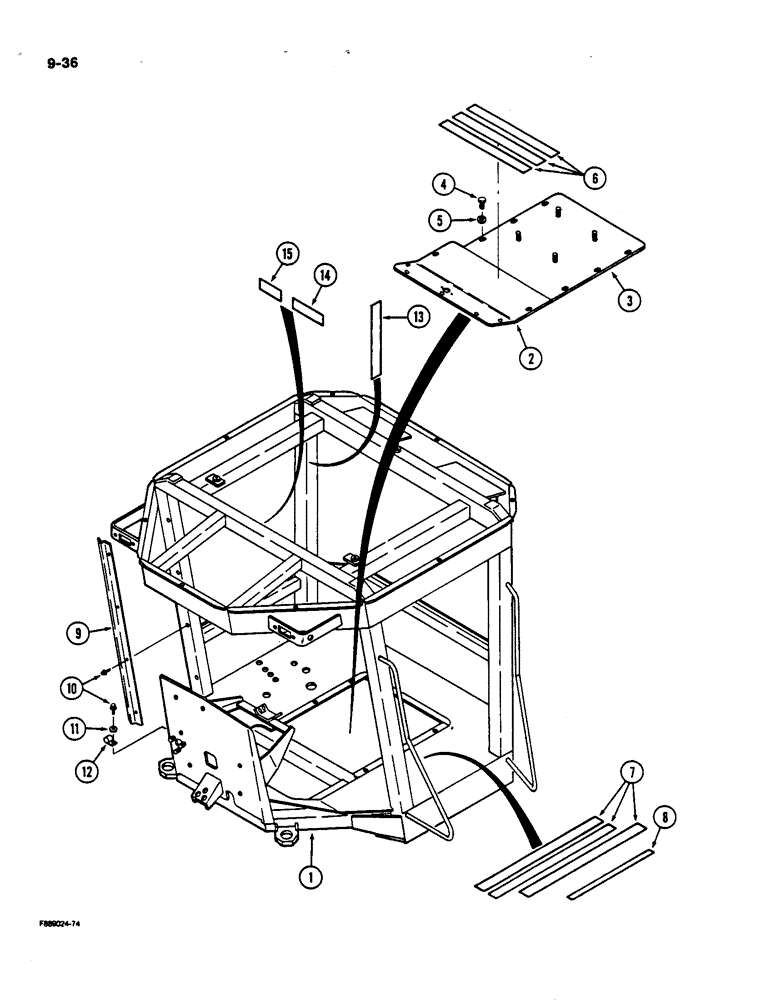

Запчасти Case IH 9170 (9-036) - ROPS FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - protective ROPS, See Figure 9-28

1шт.

2

60-5612T1

PLATE

- floor access, front

1шт.

3

60-5598T1

COVER

PLATE - floor access, rear

1шт.

4

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

13шт.

5

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

13шт.

6

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 25 inch (Order 26-211T1 and, Serial Range: cut-length)

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 38 inch (Order 26-211T1 and, Serial Range: cut-length)

1шт.

8

60-4599T1

BAND

STRIP - non skid, 1 inch x 25 inch

1шт.

9

60-5855T1

GUARD

- wire, ROPS post

1шт.

10

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

6шт.

11

19-195

WASHER,#10

- flat, No. 10

2шт.

12

31-1349

MOUNTING CLIP

CLAMP - wire harness

2шт.

13

2-7393T1

DECAL

- safety

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - ROPS

1шт.

15

60-5866T1

DECAL

- hearing protection

1шт.
