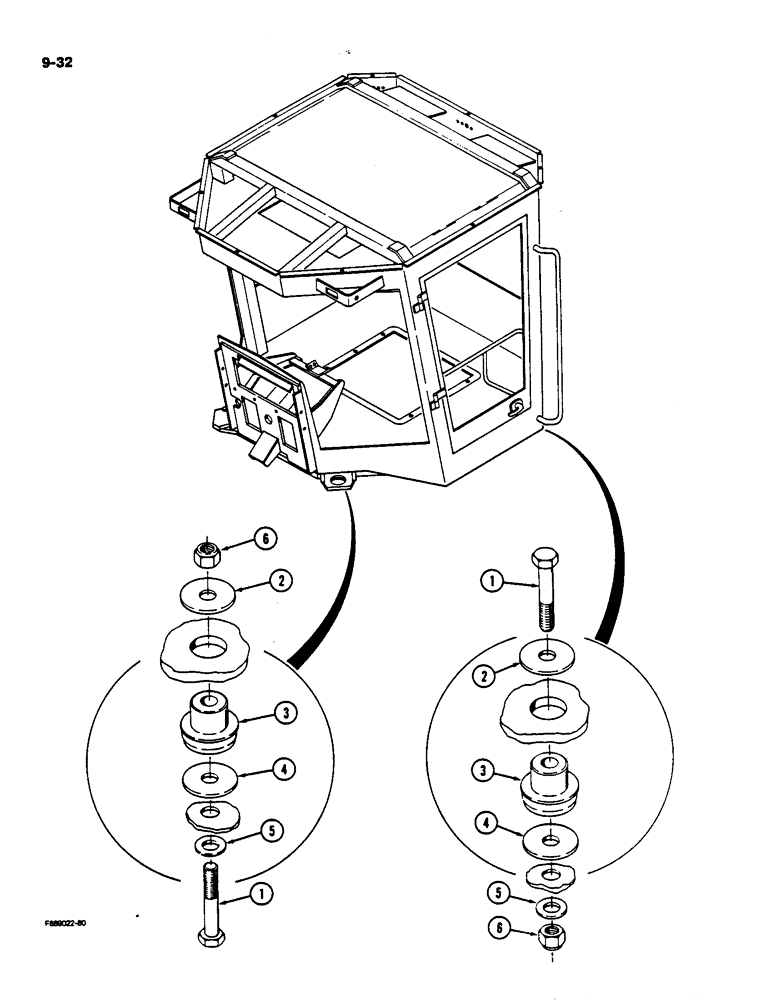

Запчасти Case IH 9170 (9-032) - MOUNTS, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS

1

19-5352

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

4шт.

2

60-5033T1

WASHER

SNUBBER - 1-1/16 x 3-1/4 x 1/4 inch thick

4шт.

3

60-4379T1

MOUNTING PARTS

MOUNT - rubber isolator

4шт.

4

60-4378T1

WASHER

SPACER - 1-1/16 x 3-5/8 x 1/4 inch thick

4шт.

5

19-5739

WASHER

- flat, hardened, 1-1/16 x 2 x 5/32 inch

4шт.

6

19-5405

LOCK NUT

- lock, 1 inch NC

4шт.
