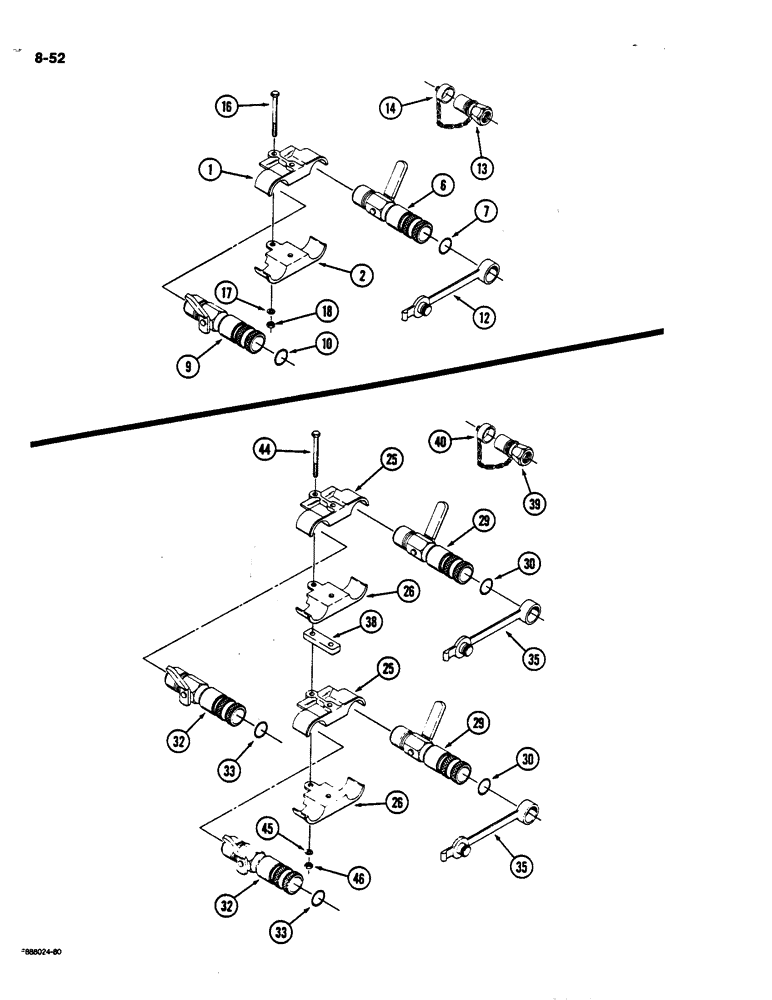

Запчасти Case IH 9170 (8-52) - QUICK DISCONNECT COUPLER ASSEMBLY, SINGLE REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-1328T92
ASSEMBLY
COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1 - 18
1шт.
For listed couplers there is a new style holder/clamp if problems with hook-up occur. See NTR SB 007 92.
1шт.
1
50-1455T1
CLAMP BRACKET
CLAMP - coupler, top
1шт.
2
50-1454T1
CLAMP BRACKET
CLAMP - coupler, bottom
1шт.
6
50-1459T91
PUSH-PULL COUPLING
COUPLER - quick, red handle, Includes: Ref. 7
1шт.
7
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler
1шт.
9
50-1460T91
PUSH-PULL COUPLING
COUPLER - quick, yellow handle, Includes: Ref. 10
1шт.
10
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler
1шт.
12
50-2267T1
PLUG
CAP - coupler dust, rubber (Replaces 1-7142)
2шт.
13
1-7141
FITTING
CARTRIDGE - coupler, remote
2шт.
14
1-7142
CAP
- cartridge dust (Replaces 50-2267T1)
2шт.
16
19-279
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- hex, 3/8 NC x 3 inch
2шт.
17
492-11038
LOCK WASHER,3/8"
2шт.
18
19-78
SPECIAL NUT,3/8"-16, G5
- hex, 3/8 inch NC
2шт.
50-1399T92
COUPLING
COUPLER ASSEMBLY - quick, hydraulic, disconnect, double remote, Includes: Ref. 25 - 46
1шт.
For listed couplers there is a new style holder/clamp if problems with hook-up occur. See NTR SB 007 92.
1шт.
25
50-1455T1
CLAMP BRACKET
CLAMP - coupler, top, quick disconnect assembly, double remote
2шт.
26
50-1454T1
CLAMP BRACKET
CLAMP - coupler, bottom, quick disconnect assembly, double remote
2шт.
29
50-1459T91
PUSH-PULL COUPLING
COUPLER - red handle, quick disconnect coupler assembly, double remote, Includes: Ref. 30
2шт.
30
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, quick disconnect coupler assembly, double remote
2шт.
32
50-1460T91
PUSH-PULL COUPLING
COUPLER - quick, yellow handle, disconnect assembly, double remote, Includes: Ref. 33
2шт.
33
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, quick disconnect coupler assembly, double remote
2шт.
35
50-2267T1
PLUG
CAP - coupler dust, rubber (Replaces 1-7142), quick disconnect assembly, double remote
4шт.
38
50-1604T1
SPACER
- quick disconnect coupler assembly, double remote
1шт.
39
1-7141
FITTING
CARTRIDGE - quick disconnect coupler assembly, double remote
4шт.
40
1-7142
CAP
- cartridge dust (Replaces 50-2267T1), quick disconnect coupler assembly, double remote
4шт.
44
113-2232
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
- hex, 3/8 NC x 5-1/2 inch, quick disconnect coupler assembly, double remote
2шт.
45
492-11038
LOCK WASHER,3/8"
quick disconnect coupler assembly, double remote 3/8"
2шт.
46
19-78
SPECIAL NUT,3/8"-16, G5
- hex, 3/8 inch NC, quick disconnect coupler assembly, double remote
2шт.
Выбрано товаров: 29
