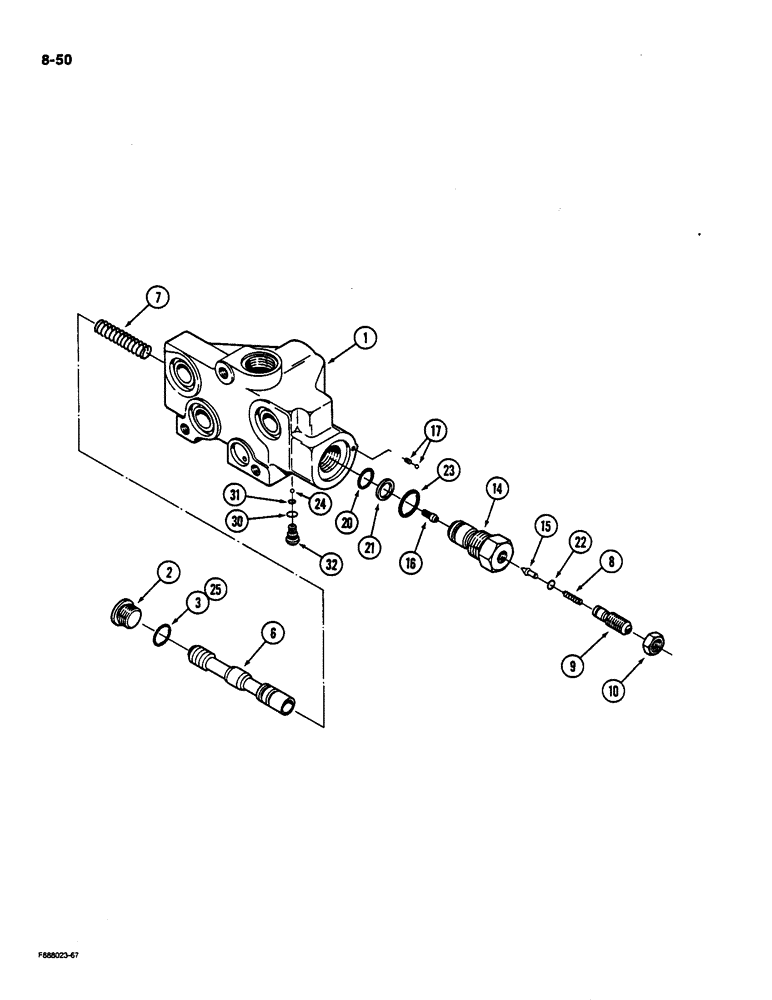

Запчасти Case IH 9170 (8-50) - HYDRAULIC REMOTE VALVE INLET, WITH PRIORITY VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2960T92
VALVE
BODY ASSEMBLY - inlet, with priority valve, Includes: Ref. 1 - 32
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - inlet
1шт.
2
31-2094
PLUG
- socket head, 7/8 inch thread, Includes: Ref. 3
1шт.
3
31-644
O-RING,10-1, 90 Duro, .755" ID x .097" Thk
- 3/4 x 3/32 inch
1шт.
6
NSS
NOT SOLD SEPARAT
SPOOL - compensator
1шт.
7
50-2961T1
SPRING
- spool
1шт.
8
50-2578T1
SPRING
- poppet
1шт.
9
50-2579T1
ADJUSTMENT SCREW
- adjustment, pressure setting
1шт.
10
19-81
NUT,1/2"-13, G5
- hex, 1/2 inch NC
1шт.
14
50-2580T1
SPINDLE
HOUSING - relief valve
1шт.
15
50-1751T1
VALVE POPPET
POPPET - pilot
1шт.
16
50-2581T1
FILTER
- screen
1шт.
17
50-2566T1
PLUG
- expansion
1шт.
50-2582T1
SEAL KIT
SEAL KIT - inlet, Includes: Ref. 20 - 32
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - seal, relief valve
1шт.
21
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - seal, valve housing
1шт.
24
104916
BALL BEARING,0.1875 mm OD
- steel
1шт.
25
31-644
O-RING,10-1, 90 Duro, .755" ID x .097" Thk
- 3/4 x 3/32 inch
1шт.
50-3002T91
PLUG
ASSEMBLY - shuttle
1шт.
50-1654T1
SEAL KIT
KIT - shuttle plug, Includes: Ref. 30 & 31
1шт.
30
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle
1шт.
32
NSS
NOT SOLD SEPARAT
SEAT - shuttle plug
1шт.
Выбрано товаров: 25
