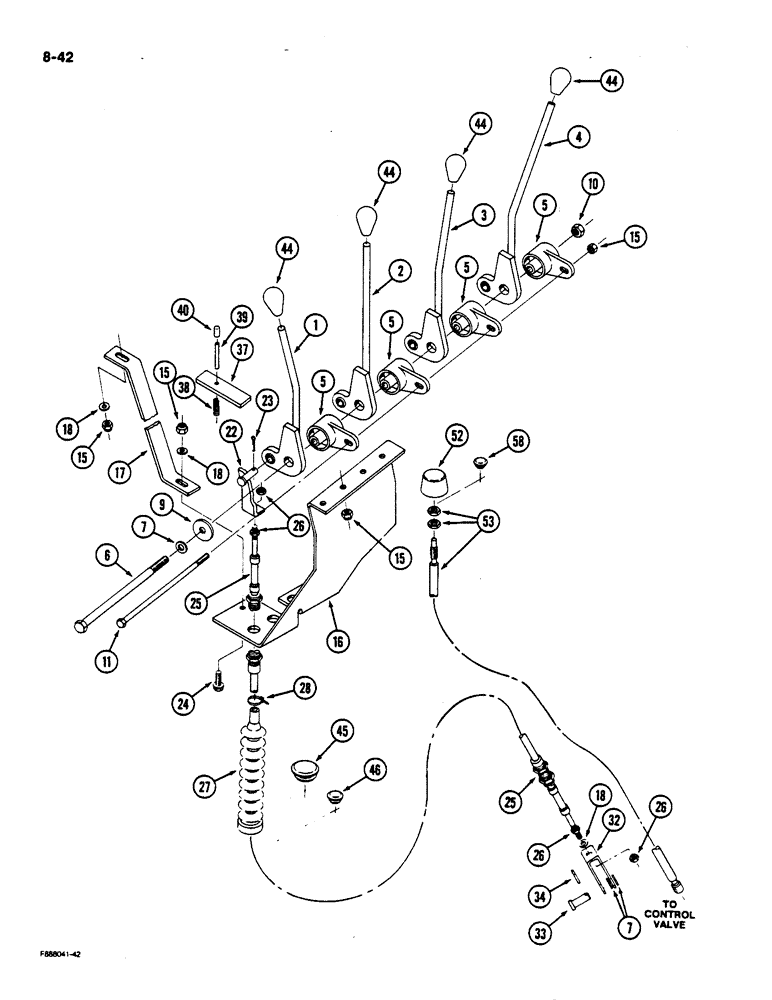

Запчасти Case IH 9170 (8-42) - REMOTE HYDRAULIC CONTROL (08) - HYDRAULICS

1

60-4341T1

LEVER

- control, first remote

1шт.

2

60-4342T1

LEVER

- control, second remote

1шт.

3

60-4343T1

LEVER

- control, third remote

1шт.

4

60-4344T1

LEVER

- control, fourth remote

1шт.

5

60-3920T1

BUSHING

- lever pivot

4шт.

6

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

7

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

9шт.

9

19-6154

WASHER

- flat, nylon, 3/8 x 1-1/4 x 1/16 inch

1шт.

10

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

11

19-6213

SCREW,Hex, 1/4" - 20 x 6", Gr 5

BOLT - hex, 1/4 NC x 6 inch

1шт.

15

19-1081

LOCK NUT

- hex, lock, 1/4 inch NC

7шт.

16

60-5871T1

PLATE

- mounting, cable

1шт.

17

60-5872T1

SUPPORT

- mounting plate

1шт.

18

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

6шт.

22

60-5875T1

DRAG LINK

LINK - cable actuating

4шт.

23

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

4шт.

24

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - flanged head, 1/4 NC x 3/4 inch

1шт.

25

60-5870T1

KIT

CABLE - valve actuating

4шт.

26

19-936

JAM NUT

- hex jam, 1/4 inch NF

16шт.

27

60-4279T1

BELLOWS

BOOT - rubber

4шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

4шт.

32

60-4384T1

CLEVIS COUPLING

YOKE - clevis, valve attaching

4шт.

33

19-145

CLEVIS PIN,3/8" x 1.06"

PIN - cievis, 3/8 x 1 inch

4шт.

34

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

37

60-3933T1

BRACKET

- lockout, lever

4шт.

38

60-3934T1

VALVE SPRING

SPRING - lockout, lever

4шт.

39

38-11222

LOCK PIN,3/16" x 1 3/8", Slotted

Pin, (replaces 19-6218) 3/16" x 1 3/8", Slotted

4шт.

REF: 39 R/B 38-11222 SLOTTED SPRING PIN PER ECN F97597 MV.

1шт.

40

60-3937T1

CYLINDER END CAP

CAP - lockout, lever

4шт.

44

60-4346T1

KNOB

- lever, control

4шт.

45

22-619

GROMMET

PLUG - hole, four remote access, (If equipped)

1шт.

46

64-146

PLUG

- hole, flow control access

3шт.

60-4688T1

CABLE

CONTROL KIT - flow (Replaces 35-1591T91), Includes: Ref. 52 & 53

1шт.

NOTE: 35-1591T91 CONTROL KIT SUBS TO 60-4688T1 SHAFT ASSY. WHICH IS ONLY 33" LONG. IF YOU NEED ITEM #52, 60-4339T1 KNOB AND ITEM #53, 60-5820T1 SHAFT ASSY. WHICH IS 52" LONG, YOU MUST ORDER SEPARTELY. DJO 5/6/96

1шт.

52

60-4339T1

BUTTON

KNOB - flow control

1шт.

53

60-5820T1

CABLE

SHAFT ASSEMBLY - flex, flow control

1шт.

58

60-4258T1

PLUG

- hole, flow control access, console

3шт.
