Запчасти Case IH 9170 (2-04) - RADIATOR AND ATTACHING PARTS, 3406 ENGINE (02) - ENGINE

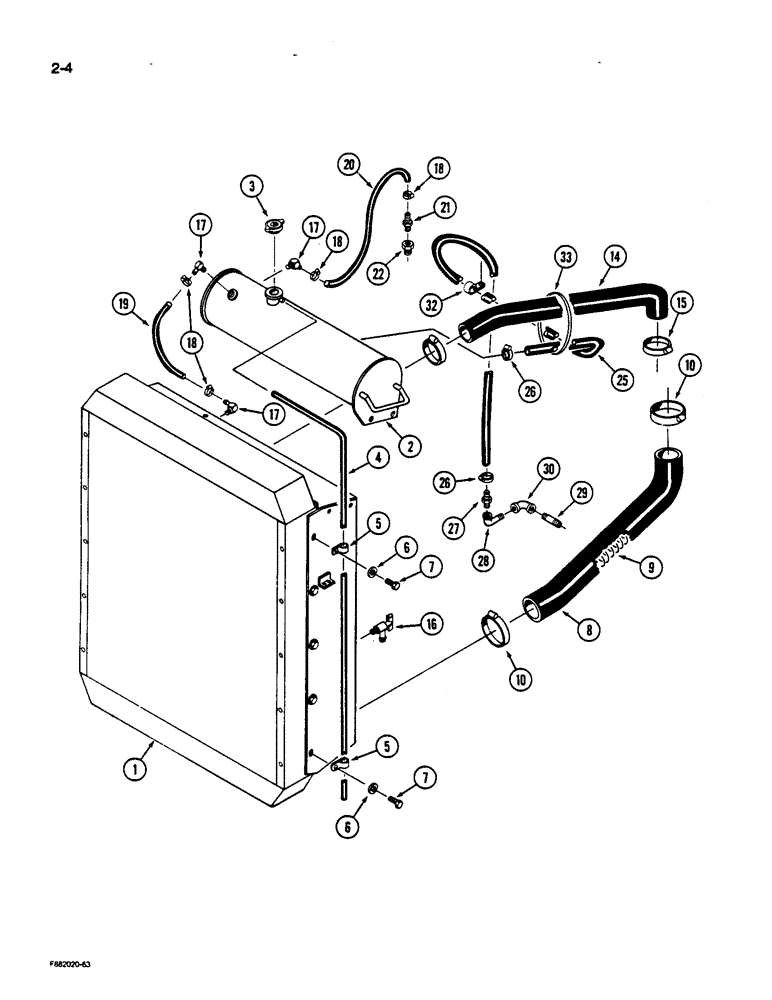

Схема запчастей Case IH 9170 - (2-04) - RADIATOR AND ATTACHING PARTS, 3406 ENGINE (02) - ENGINE
4
17
32
18
8
5
26
25
28
26
17
18
16
30
29
10
6
3
15
1
33
22
7
19
14
5
2
6
18
27
9
20
7
10
17
21

Артикул

Название

Примечание

Количество

1

90-6781T1

RADIATOR

ASSEMBLY - cooling system

1шт.

2

90-6817T1

TANK

- radiator fill

1шт.

3

80889R91

COVER

CAP - radiator

1шт.

4

31-1260

HOSE,0.25" ID x 57.00"

Overflow 0.25" ID x 57.00"

1шт.

5

31-2173

CLIP

CLAMP - hose

2шт.

6

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

2шт.

7

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/4 NC x 1/2 inch

2шт.

8

90-6823T1

RADIATOR HOSE,3.00" ID x 22.29", SAE 20R4

Lower 3.00" ID x 22.29", SAE 20R4

1шт.

9

90-2289T1

SPRING

- hose

1шт.

10

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch

2шт.

14

90-6824T1

RADIATOR HOSE,2.50" ID x 21.95", SAE 20R4

Upper 2.50" ID x 21.95", SAE 20R4

1шт.

15

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP - hose, 2 to 3 inch

2шт.

16

31-159

COCK, DRAIN

VALVE - drain, radiator, 90 degree

1шт.

17

31-2737

ELBOW

CONNECTOR - 90 degree, 1/8 NPT x 1/4 inch

2шт.

18

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 7/32 x 5/8 inch

4шт.

19

31-2781

HOSE,6.4 mm ID x 146.10 mm

Tank to Radiator 6.4 mm ID x 146.10 mm

1шт.

20

31-2792

HOSE

RADIATOR HOSE - Tank to Engine, 1/4 x 23 inch

1шт.

21

31-1186

FITTING

CONNECTOR - straight, 1/4 NPT x 1/4 inch

1шт.

22

1-2349

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

CONNECTOR - straight, 1/4 NPT x 1/2 inch NPT

1шт.

25

31-2793

HOSE,1.00" ID x 43.00"

Tank to Engine 1.00" ID x 43.00"

1шт.

26

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, 13/16 x 1-3/4 inch

2шт.

27

31-318

HOSE

CONNECTOR - straight, 3/4 NPT x 1 inch

1шт.

28

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

CONNECTOR - 90 degree, 3/4 NPT x 3/4 inch NPT

1шт.

29

221-217

PIPE,Nipple, 3/4" NPT x 3"

CONNECTOR - straight, 3/4 NPT x 3/4 NPT x 3 inch

1шт.

30

31-44

ELBOW

CONNECTOR - 90 degree, 3/4 NPT x 3/4 inch NPT

1шт.

32

1-2191

MOUNTING CLIP

CLAMP - hose

1шт.

33

19-135

CABLE TIE

STRAP - nylon

1шт.

Выбрано товаров: 27
