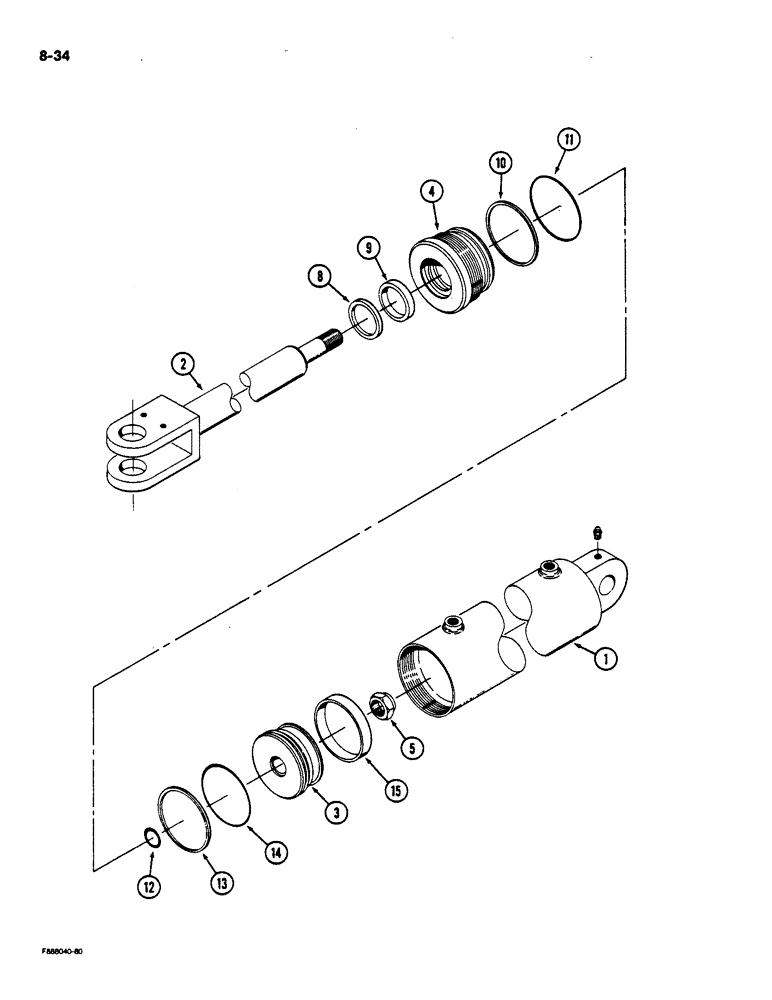

Запчасти Case IH 9170 (8-34) - HITCH CYLINDER ASSEMBLY (08) - HYDRAULICS

2-1127T92

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch, Includes: Ref. 1 - 18

1шт.

1

2-1122T1

JACK BODY

BARREL - cylinder

1шт.

2

2-1126T3

PISTON ROD

ROD - cylinder

1шт.

3

1-9815T1

PISTON

- cylinder

1шт.

4

50-1057T1

CYLINDER END CAP

GUIDE - rod

1шт.

5

19-5582

LOCK NUT

- hex, lock

1шт.

8

1-9859T1

WIPER SEAL

SEAL - wiper, rod

1шт.

9

1-9858T1

SEAL

- rod

1шт.

10

1-9853T1

SEALING WASHER,118.19mm ID x 127.48mm OD x 1.93mm Thk

WASHER - backup, O-ring

1шт.

11

1-9852T1

O-RING,4.6" ID x 0.21" Width

O-RING - seal, guide

1шт.

12

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - seal, rod

1шт.

13

1-9855T1

RING, PISTON

RING - piston

1шт.

14

1-9856T1

O-RING,4.487" ID x 0.103" Width

- seal, piston

1шт.

15

1-9854T1

RING

- wear, piston

1шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
