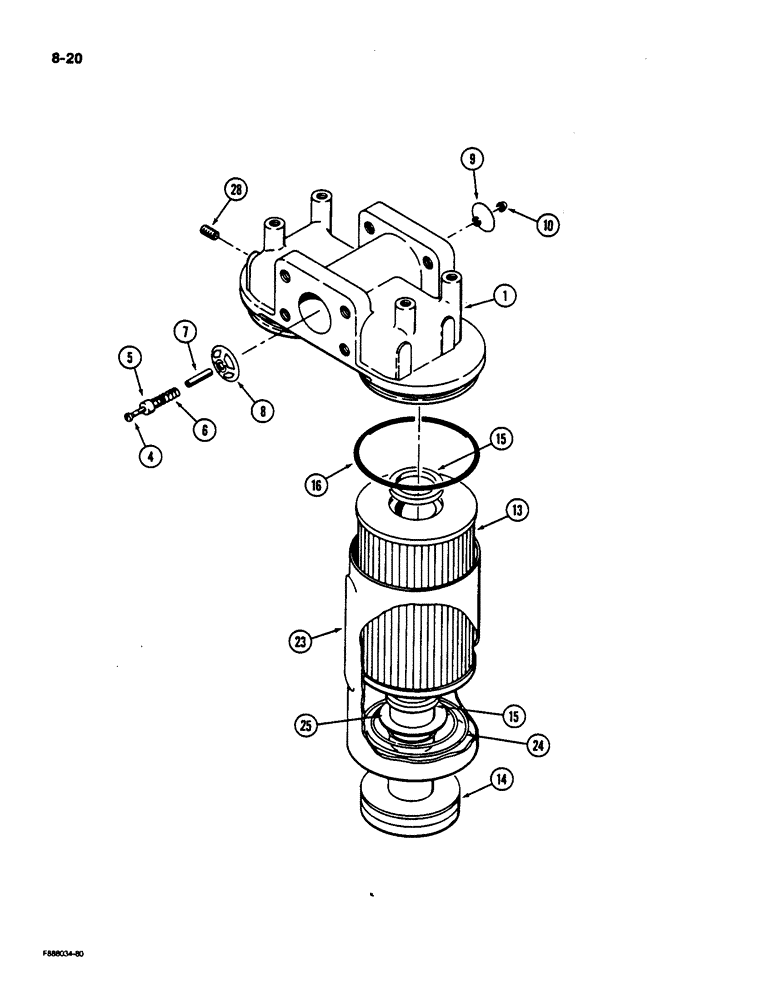

Запчасти Case IH 9170 (8-20) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

50-1389T91

FILTER

ASSEMBLY - oil, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - filter head

1шт.

50-1876T91

BY-PASS VALVE

BYPASS ASSEMBLY - filter, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - machine, pan head

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - spring retainer

1шт.

6

50-1877T1

SPRING

- bypass relief

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - bypass

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

50-1911T91

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 13 - 16

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - filter

2шт.

14

18-96

GASKET

- center post to filter housing

2шт.

15

18-92

SEAL

- filter

4шт.

16

18-91

O-RING

SEAL - housing

2шт.

22

1-6200

POST

- center, filter housing retainer

2шт.

23

18-95

HOUSING

- filter

2шт.

24

18-94

SPRING

- conical, filter

2шт.

25

18-93

WASHER

- backup

2шт.

28

31-38

PLUG

- hex head, 1/8 inch NPT

2шт.

D131923

BOX, TOOL

FILTER ASSY hydraulic, new production unit "89"

1шт.

N9025

HYDRAULIC OIL FILTER

1шт.

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

1шт.
