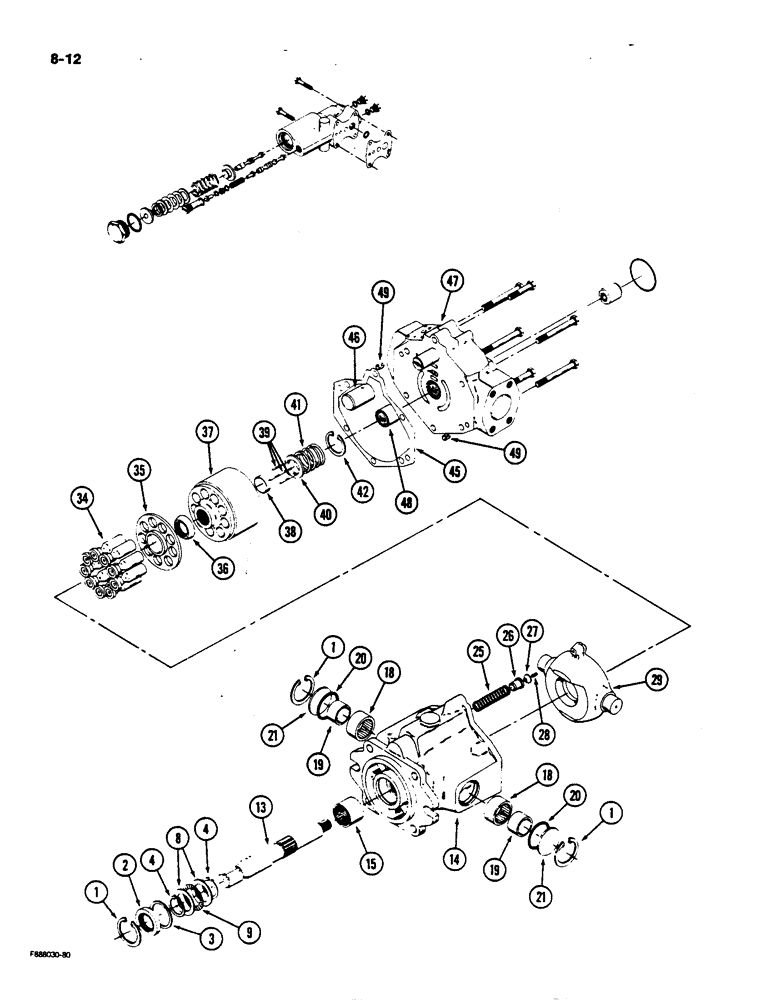

Запчасти Case IH 9170 (8-12) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS

50-1452T92

PUMP

ASSEMBLY - piston, Includes: Ref. 1 - 49 and 55 - 98 on Figure 8-14

1шт.

1

19-6014

SNAP RING

RING - snap

3шт.

2

50-1779T1

SEAL

- shaft, drive

1шт.

3

50-1780T1

WASHER

- flat

1шт.

4

19-6015

WASHER

RING - snap

2шт.

8

50-1782T1

THRUST WASHER

WASHER - bearing, thrust

2шт.

9

50-1783T1

THRUST BEARING

-thrust

1шт.

13

50-1778T1

SHAFT

- drive, pump

1шт.

14

50-1785T91

HOUSING

ASSEMBLY - pump, Includes: Ref. 15

1шт.

15

50-1786T1

ROLLER BEARING

- roller

1шт.

18

50-1787T1

NEEDLE BEARING

- roller

2шт.

19

50-1788T1

RACE

- inner, bearing

2шт.

20

50-1789T1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

-trunnion cover

2шт.

21

50-1790T1

COVER

- trunnion

2шт.

25

50-1791T1

SPRING

- camplate

1шт.

26

50-1792T1

COLLAR

- spring

1шт.

27

50-1793T1

BUTTON

- pivot

1шт.

28

455160

LOCK PIN,3/16" x 1/2", Slotted

Pin, 3/16" x 1/2", Slotted

1шт.

29

50-1795T1

PLATE

- cam

1шт.

50-1796T1

KIT

ROTATING KIT - piston, Includes: Ref. 34 - 42

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - pump

9шт.

35

NSS

NOT SOLD SEPARAT

PLATE - shoe

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

37

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, piston

1шт.

38

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

39

NSS

NOT SOLD SEPARAT

PIN - block

3шт.

40

NSS

NOT SOLD SEPARAT

WASHER -spring

1шт.

41

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

42

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

45

50-1797T1

GASKET

- housing

1шт.

46

50-1798T1

COLLAR

PISTON - control, cam plate

1шт.

50-2963T91

BACK PLATE

PLATE ASSEMBLY- back, Includes: Ref. 47 - 49

1шт.

47

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

48

50-1800T1

NEEDLE BEARING

roller

1шт.

49

50-1801T1

DOWEL

PIN - dowel

2шт.
