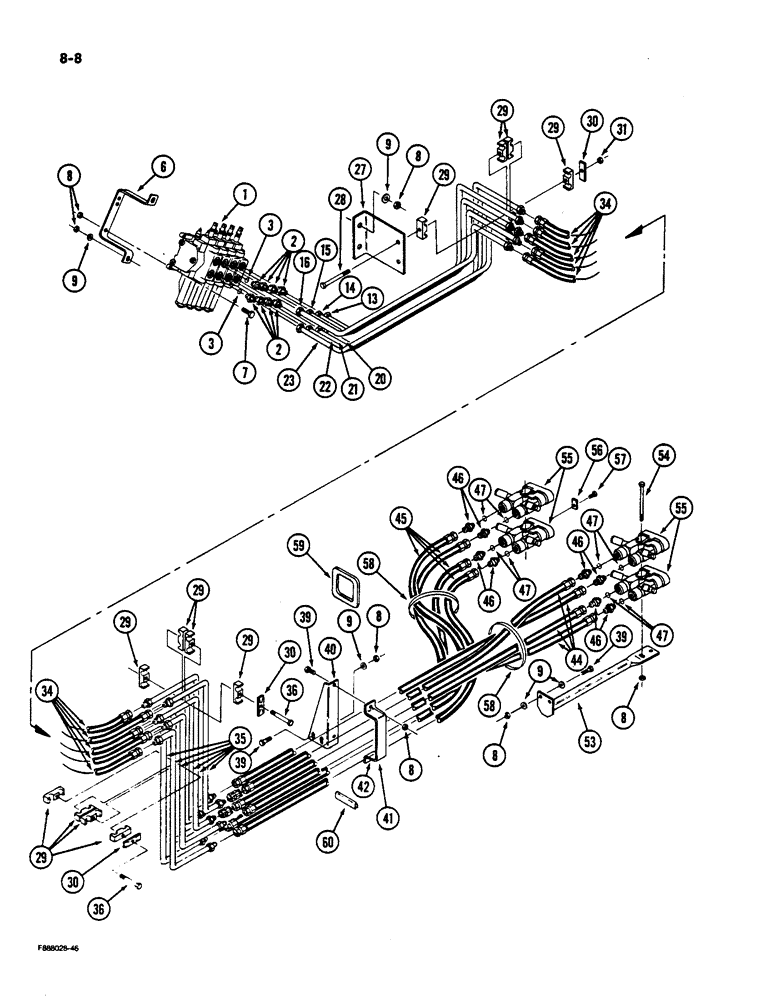

Запчасти Case IH 9170 (8-08) - COUPLERS AND LINES, PRIOR TO P.I.N. JCB0002092 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - control, See Figure 8-45
1шт.
2
18-608
HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - straight, 7/8 x 1-1/16 inch thread, Includes: Ref. 3
8шт.
3
31-644
O-RING,10-1, 90 Duro, .755" ID x .097" Thk
- 3/4 x 3/32 inch
8шт.
6
50-3042T1
SUPPORT
BRACKET - valve mounting
2шт.
7
19-19
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
3шт.
8
19-78
SPECIAL NUT,3/8"-16, G5
- hex, 3/8 inch NC
21шт.
9
19-107
WASHER
- flat, 3/8 x 1 x 5/64 inch
12шт.
13
50-3010T1
HYD TUBE
TUBE - remote pressure, section 1
1шт.
14
50-3008T1
HYD TUBE
TUBE - remote pressure, section 2
1шт.
15
50-3006T1
HYD TUBE
TUBE - remote pressure, section 3
1шт.
16
50-3004T1
HYD TUBE
TUBE - remote pressure, section 4
1шт.
20
50-3011T1
HYD TUBE
TUBE - remote return, section 1
1шт.
21
50-3009T1
HYD TUBE
TUBE - remote return, section 2
1шт.
22
50-3007T1
HYD TUBE
TUBE - remote return, section 3
1шт.
23
50-3005T1
HYD TUBE
TUBE - remote return, section 4
1шт.
27
50-3015T1
SUPPORT
BRACKET - mounting, tubes
1шт.
28
19-333
BOLT,Hex, 5/16" - 18 x 4", Gr 5
- hex, 5/16 NC x 4 inch
2шт.
29
50-2551T1
CLAMP
- tube, split halves
24шт.
30
50-2533T1
PLATE
COVER - clamp
6шт.
31
19-77
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
34
31-2770
HOSE ASSY.
HOSE - tube to tube, 28 inch
8шт.
35
50-3003T1
HYD TUBE
TUBE -, Serial Range: hose-hose
8шт.
36
113-178
BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5
- hex, 5/16 NC x 4-1/2 inch
4шт.
39
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
8шт.
40
50-1310T2
BRACE
BRACKET - mounting, hose
1шт.
41
50-1308T1
BRACKET
- clamping, hose
1шт.
42
2-7089T2
SEAL
GROMMET - hose protection, clamping bracket
2шт.
44
31-2768
HOSE ASSY.
HOSE - remote coupler, LH, 91 inch
4шт.
45
31-2769
HOSE ASSY.
HOSE - remote coupler, RH, 78 inch
4шт.
46
18-570
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - straight, 7/8 x 7/8 inch thread, Includes: Ref. 47
8шт.
47
31-644
O-RING,10-1, 90 Duro, .755" ID x .097" Thk
- 3/4 x 3/32 inch
8шт.
53
50-2880T1
SUPPORT
MOUNT - coupler
2шт.
54
113-2232
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
- hex, 3/8 NC x 5-1/2 inch
4шт.
54
19-279
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- hex, 3/8 NC x 3 inch
2шт.
55
REF
INSTRUCTION
COUPLER ASSEMBLY - hydraulic, See Figure 8-52
2шт.
56
50-2778T1
PLATE
MARKER - coupler, No. 1
1шт.
56
50-2779T1
PLATE
MARKER - coupler, No. 2
1шт.
56
50-2780T1
PLATE
MARKER - coupler, No. 3
1шт.
56
50-2781T1
PARTITION
MARKER - coupler, No. 4
1шт.
57
113-6
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
4шт.
58
50-2037T1
STRAP
- nylon
2шт.
59
2-7088T1
GASKET
GROMMET - hose (Order 31-1783T1, and, Serial Range: cut-size)
2шт.
60
50-2034T1
GROMMET
- hose (Order 2-7089T2 and, Serial Range: cut-size)
1шт.
Выбрано товаров: 43
