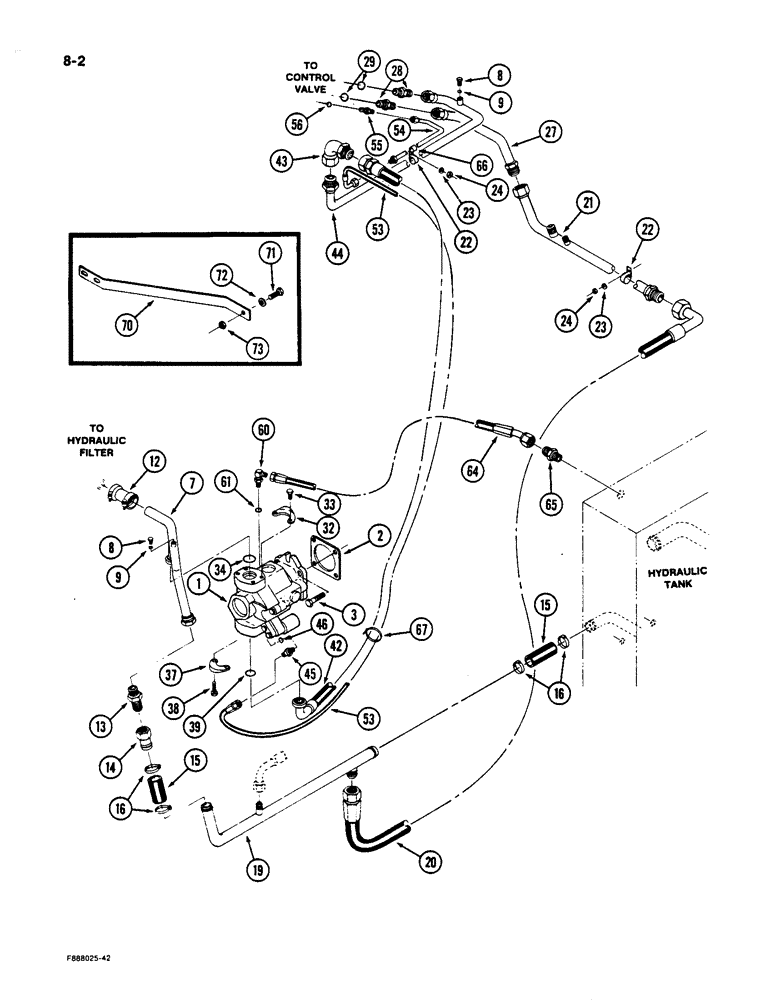

Запчасти Case IH 9170 (8-02) - HYDRAULICS SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston, See Figure 8-12

1шт.

2

50-1388T1

GASKET

- pump mounting

1шт.

3

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

4шт.

7

50-3024T1

HYD TUBE

TUBE - filter to pump to hydraulic tank

1шт.

8

1-6353

PLUG

- hex, 7/16 inch thread, Includes: Ref. 9

2шт.

9

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

2шт.

12

REF

INSTRUCTION

JOINT ASSEMBLY - tube, See Figure 8-40

1шт.

13

31-1777

VALVE

ASSEMBLY - check

1шт.

14

50-2935T1

TUBE

CONNECTOR - straight, 1-7/8 x 1-1/2 inch

1шт.

15

1-4571

HOSE

- 1-1/4 x 4 inch (Order 1-4482T1 and, Serial Range: cut-length)

2шт.

16

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

4шт.

19

50-3025T1

HYD TUBE

TUBE - return, pump to hydraulic tank

1шт.

20

31-2760

HOSE ASSY.

HOSE - return, valve to return tube, 28 inch

1шт.

21

50-3037T1

HYD TUBE

TUBE - return, crossover, Serial Range: tube-hose

1шт.

22

31-1348

CLAMP

- tube

2шт.

23

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

24

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

27

50-3038T1

HYD TUBE

TUBE - return, valve to crossover tube

1шт.

28

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - straight, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 29

2шт.

29

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 13/16 x 1/8 inch

2шт.

32

31-1220

CLAMP

FLANGE - split, clamp halves

2шт.

33

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

34

31-1219

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 3-1/4 x 9/64 inch

1шт.

37

1-3526

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

39

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-1/4 x 9/64 inch

1шт.

42

31-2758

HOSE ASSY.

HOSE - supply, pump to valve, 26 inch

1шт.

43

31-2708

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

ELBOW - 90 degree, 1-5/16 x 1-5/8 inch thread

1шт.

44

50-3039T1

HYD TUBE

TUBE - supply, elbow to hydraulic valve

1шт.

45

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 x 7/16 inch thread, Includes: Ref. 46

1шт.

46

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

53

31-2764

HOSE ASSY.

HOSE - load sense, pump to hydraulic valve, 36 inch

1шт.

54

50-3045T1

HYD TUBE

TUBE - load sense, hose to hydraulic valve, without three point hitch

1шт.

54

REF

INSTRUCTION

TUBE - load sense, hose to solenoid valve, with three point hitch, See Figure 8-25

1шт.

55

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 x 9/16 inch thread, Includes: Ref. 56

1шт.

56

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

60

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 61

1шт.

61

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

64

31-2724

HOSE ASSY.

HOSE - return, pump to hydraulic tank, 26 inch

1шт.

65

31-382

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

CONNECTOR - straight, 1 inch NPT x 1-5/16 inch thread

1шт.

66

155850H1

CLAMP,3/8", 1/4" Bolt

- tube

1шт.

67

50-2037T1

STRAP

- nylon

2шт.

70

50-3083T1

BRACKET

- stabilizer, pump to hydraulic filter (Prior to P.I.N. 17901108) (Order 35-1728T91 Kit)

1шт.

71

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Prior to P.I.N. 17901108)

1шт.

72

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch (Prior to P.I.N. 17901108)

1шт.

73

19-83

NUT,5/8"-11, G5

- hex, 5/8 inch NC (Prior to P.I.N. 17901108)

1шт.
