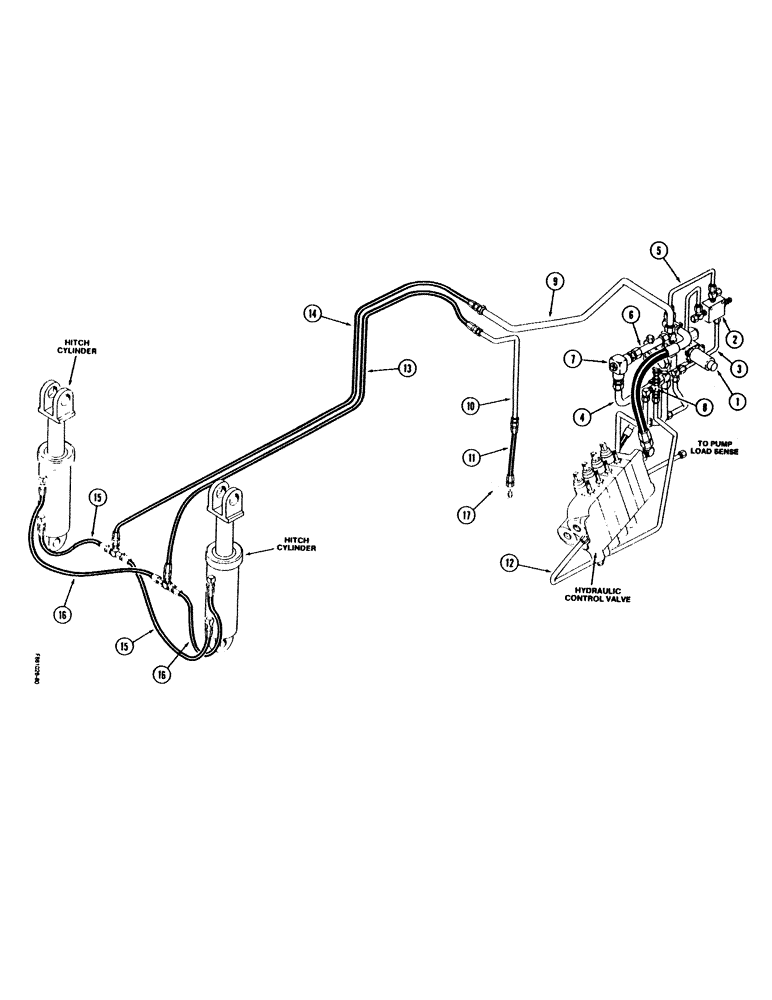

Запчасти Case IH 9170 (1-18) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch Solenoid Valve, Pg 8-37

1шт.

2

Pressure Reducing Valve, Pg 8-39

1шт.

3

Valve to Valve Tube, Pg 8-25

1шт.

4

Relief Valve To Valve Tube, Pg 8-25

1шт.

5

Valve to Valve Tube, Pg 8-25

1шт.

6

Valve to Relief Valve Tube, Pg 8-25

1шт.

7

Relief Valve, Pg 8-39

1шт.

8

Shuttle Valve, Pg 8-25

1шт.

9

Valve to Hitch Cylinder Tube, Pg 8-25

1шт.

10

Cylinder Drain Tube, Pg 8-27, 8-29

1шт.

11

Cylinder Drain Hose, Pg 8-27, 8-29

1шт.

12

Shuttle Valve to Control Valve Tube, Pg 8-25

1шт.

13

Cylinder Drain Hose, Pg 8-27, 8-29

1шт.

14

Cylinder Pressure Hose, Pg 8-27, 8-29

1шт.

15

Cylinder Lift Hose, Pg 8-27, 8-29

1шт.

16

Cylinder Drain Hose, Pg 8-27, 8-29

1шт.

17

Return Tube, Pg 8-3

1шт.
