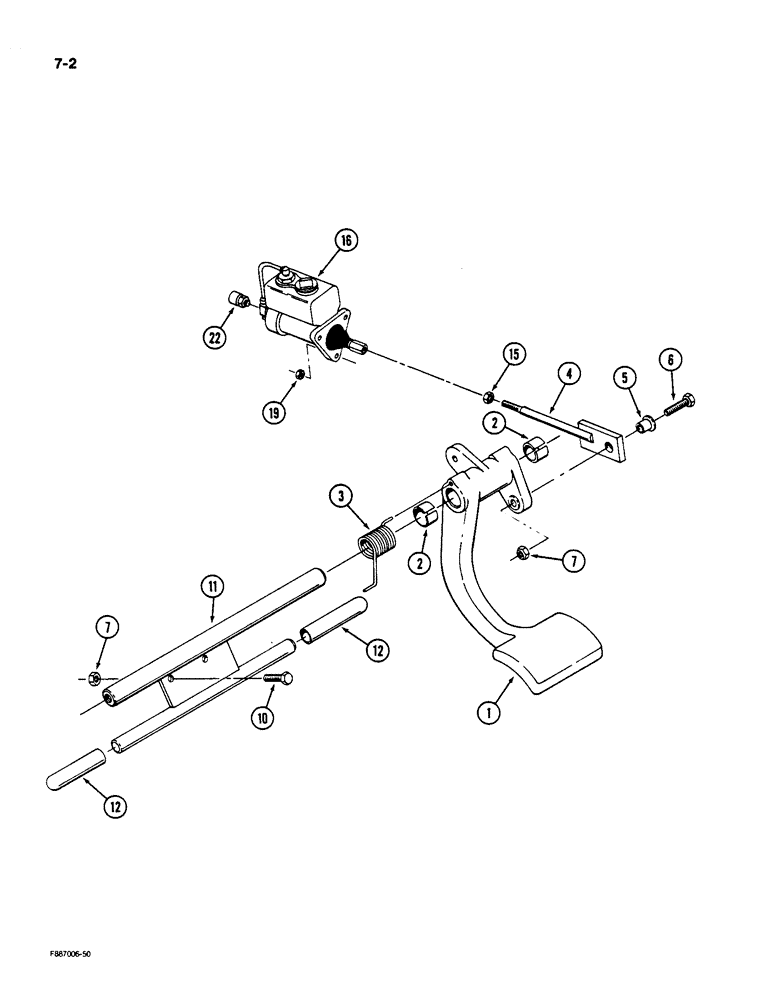

Запчасти Case IH 9170 (7-02) - BRAKE CONTROLS (07) - BRAKES

1

60-4251T2

PEDAL

- brake

1шт.

2

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BEARING - pivot, split

2шт.

3

11-19

SPRING

- torsion, pedal return

1шт.

4

60-5792T1

THREADED ROD

ROD - push, master cylinder

1шт.

5

60-4337T1

FLANGED BEARING

BEARING - flanged

1шт.

6

19-46

BOLT,1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.

7

19-653

LOCK NUT

- hex, lock, 1/2 inch NC

3шт.

10

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

11

60-5074T1

PEDAL

MOUNT - pedal, brake and clutch

1шт.

12

1-3520

BUMPER

- pedal stop, brake and clutch

2шт.

15

19-2257

NUT

- hex, 5/8 inch NF

1шт.

16

REF

INSTRUCTION

CYLINDER - master, brake, See Figure 7-12

1шт.

19

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

3шт.

22

22-729

SWITCH

- brake light

1шт.
