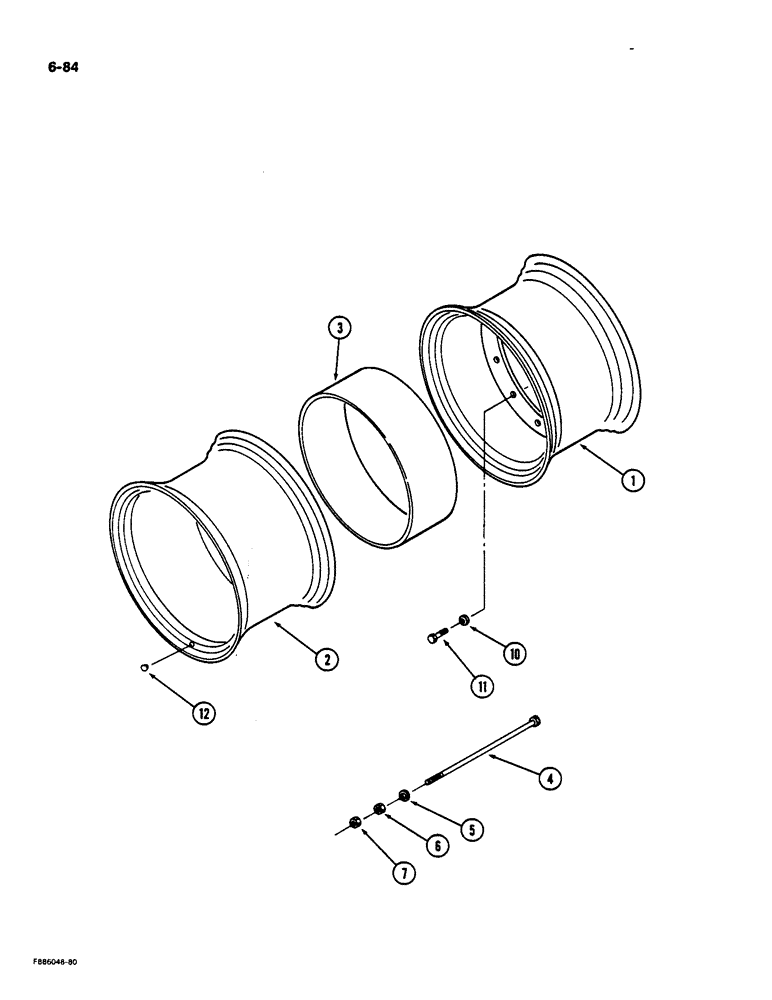

Запчасти Case IH 9170 (6-84) - WHEELS, WITH SPACER BAND DUALS (06) - POWER TRAIN

1

30-1124T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

30-1112T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

20-293

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1161T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

1

30-1313T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1118T1

WHEEL

- inner, 35.5 x 32 inch, 31 inch width

4шт.

2

20-107

RIM

WHEEL - dual, 23.1 x 34 inch, 20 inch width

4шт.

2

20-191

RIM

WHEEL - dual, 20.8 x 38 inch, 18 inch width

4шт.

2

20-56

RIM

WHEEL - dual, 24.5 x 32 inch, 21 inch width

4шт.

2

30-1152T1

RIM

WHEEL - dual, 24.5 x 32 inch, 24 inch width

4шт.

2

30-1317T1

RIM

WHEEL - dual, 20.8 x 42 inch, 20 inch width

4шт.

3

20-70T1

SPACER

BAND - spacer, 32 x 13 inch wide

4шт.

3

20-839T1

SPACER

BAND - spacer, 32 x 15 inch wide

4шт.

3

20-162T1

SPACER

BAND - spacer, 34 x 13 inch wide

4шт.

3

20-397T1

SPACER

BAND - spacer, 34 x 15 inch wide

4шт.

3

20-1007T1

SPACER

BAND - spacer, 38 x 13 inch wide

4шт.

3

20-1001T1

SPACER

BAND - spacer, 38 x 15 inch wide

4шт.

3

30-1367T1

SPACER

BAND - spacer, 42 x 13 inch wide

4шт.

3

30-1318T1

SPACER

BAND - spacer, 42 x 15 inch wide

4шт.

4

35-1322T92

BOLT

KIT - tie bolt, 7/8 NC x 27 inch (Order 1 nut 19-457, 1 nut 19-5753 and tie bolt 19-6251), Includes: Ref. 5 - 7

24шт.

4

35-1323T91

BOLT

KIT - tie bolt, 7/8 NC x 32 inch (Order 1 nut 19-457, 1 tie bolt 19-5746, 1 nut 19-5753 and 1 washer 20-62), Includes: Ref. 5 - 7

24шт.

4

35-1324T91

KIT

- tie bolt, 7/8 NC x 34 inch (Order 1 nut 19-457, 1 tie bolt 19-5744, 1 nut 19-5753 and 1 washer 20-62), Includes: Ref. 5 - 7

24шт.

4

35-1325T91

BOLT

KIT - tie bolt, 7/8 NC x 36 inch (Order 1 nut 19-457, 1 tie bolt 19-5747, 1 nut 19-5753 and 1 washer 20-62), Includes: Ref. 5 - 7

24шт.

5

20-62

WASHER

- flat, 7/8 x 3 x 1/4 inch

24шт.

6

19-5753

JAM NUT

- hex jam, 7/8 inch NC

24шт.

7

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

24шт.

10

19-2975

WASHER

- flat, hardened

40шт.

11

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

12

22-521

PLUG

- hole

8шт.
