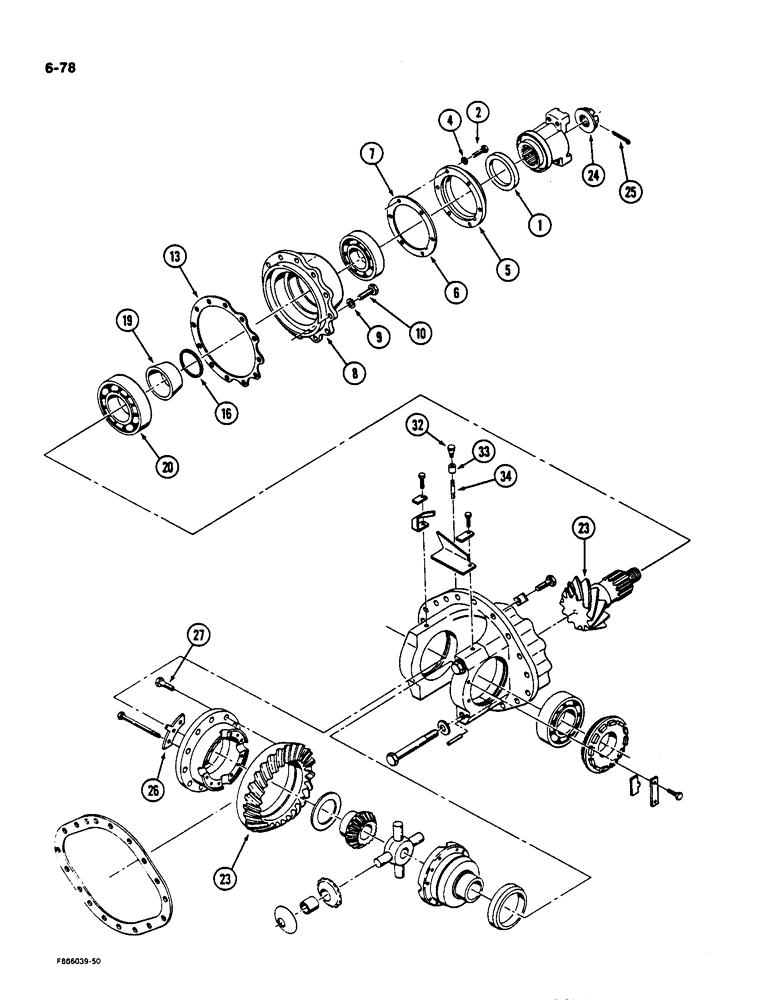

Запчасти Case IH 9170 (6-78) - AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER, K598.60/70 SERIES (CONTD) (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, Includes: Ref. 1 - 34, 1 - 38 on Figure 6-74, 45 - 80 on Figure 6-76, and 40 - 71 on Figure 6-80

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, Includes: Ref. 1 - 34, 1 - 38 on Figure 6-74, 45 - 80 on Figure 6-76, and 40 - 71 on Figure 6-80

1шт.

90-4487T91

DIFFERENTIAL

ASSEMBLY - front, Includes: Ref. 1 - 34

1шт.

90-4486T91

DIFFERENTIAL

ASSEMBLY - rear, Includes: Ref. 1 - 34

1шт.

1

90-2509T1

SEALING RING

- input

1шт.

2

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

- hex, M8 x 28 mm, Grade 10.9

6шт.

4

16-1586

SPRING WASHER

WASHER - lock, M8

6шт.

5

90-4517T1

COVER

- seal retainer

1шт.

6

90-4516T1

GASKET

- cover

1шт.

7

16-1582

TAPERED BEARING

BEARING - taper roller

1шт.

8

90-4515T1

HOUSING

- bearing retainer

1шт.

9

16-1592

LOCK WASHER

- lock, M14

12шт.

10

16-1621

SCREW,Hex, M14 x 1.5 x 45mm, Gr 10.9

BOLT - hex, M14 x 1.5 x 45 mm, Grade 10.9

12шт.

13

16-1569

SHIM

- housing, 0.20 mm thick

1шт.

13

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

13

16-1568

SHIM

- housing, 0.30 mm thick

1шт.

13

16-1567

SHIM

- housing, 0.50 mm thick

1шт.

13

16-1566

SHIM

- housing, 1.00 mm thick

1шт.

16

90-4504T1

SPACER

- bearing, 4.00 mm thick

1шт.

16

90-4505T1

SPACER

- bearing, 4.04 mm thick

1шт.

16

90-4506T1

SPACER

- bearing, 4.08 mm thick

1шт.

16

90-4507T1

SPACER

- bearing, 4.12 mm thick

1шт.

16

90-4508T1

SPACER

- bearing, 4.16 mm thick

1шт.

16

90-4509T1

SPACER

- bearing, 4.20 mm thick

1шт.

16

90-4510T1

SPACER

- bearing, 4.40 mm thick

1шт.

16

90-4511T1

SPACER

- bearing, 4.60 mm thick

1шт.

16

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

16

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

16

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

19

90-4503T1

SPACER

SLEEVE - bearing spacer

1шт.

20

16-1565

TAPERED BEARING

BEARING -taper roller

1шт.

23

90-4502T91

GEAR, BEVEL

GEAR SET - ring and pinion, front, Includes: Ref. 24 - 27

1шт.

23

90-4501T91

GEAR, BEVEL

GEAR SET - ring and pinion, rear, Includes: Ref. 24 - 27

1шт.

24

16-1589

NUT

NUT - slotted flange

1шт.

25

16-1590

COTTER PIN,M6.3 x 63

PIN - cotter, 6.3 x 63 mm

1шт.

26

16-1546

LARGE PLATE

PLATE - bolt locking

6шт.

27

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

BOLT - hex, M18 x 1.5 x 35 mm, Grade 10.9

6шт.

32

1-1359

BREATHER

VENT - breather

1шт.

33

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING - pipe, 1/8 inch NPT

1шт.

34

31-1841

CONDUIT

NIPPLE - pipe, 1/8 NPT x 4 inch

1шт.
