(6-62) - PTO ASSEMBLY, CLUTCH PACK (CONTD)

Запчасти Case IH 9170 (6-62) - PTO ASSEMBLY, CLUTCH PACK (CONTD) (06) - POWER TRAIN

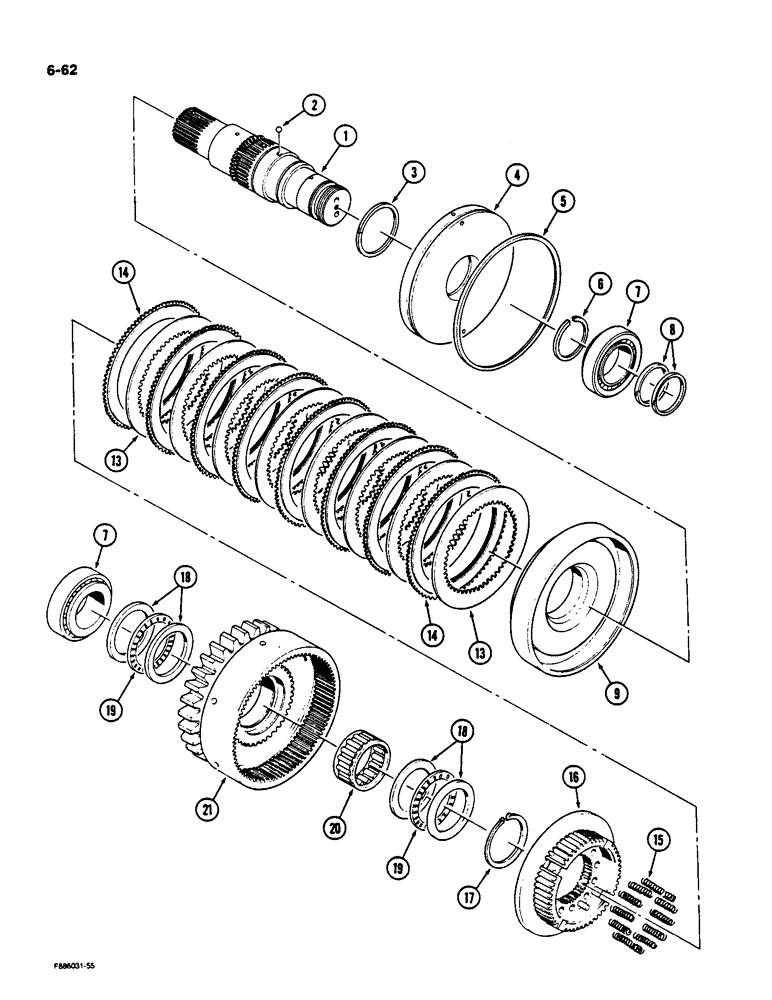

Схема запчастей Case IH 9170 - (6-62) - PTO ASSEMBLY, CLUTCH PACK (CONTD) (06) - POWER TRAIN
14
7
14
17
19
4
3
18
21
5
6
1
7
15
19
18
2
8
16
13
9
13
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-6280T91

CLUTCH

PTO ASSEMBLY, Includes: Ref. 1 - 21, 1 - 48 on Figure 6-58, 1 - 48 on Figure 6-60 and 1 - 26 on Figure 6-64

1шт.

S8590S00A

CLUTCH HOUSING

CLUTCH ASSEMBLY - PTO, Includes: Ref. 1 - 21

1шт.

1

S8610S00A

SHAFT

- input, PTO

1шт.

2

SM3272036

BALL

- steel

1шт.

3

S2610S00F

RING

- sealing

1шт.

4

S9190S00F

LARGE PLATE

PLATE - reaction

1шт.

5

S2630S00F

RING

- sealing

1шт.

6

S2240S00F

RING, SNAP

RING - retaining

1шт.

7

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

BEARING - roller

2шт.

8

S3070S00F

RING

- sealing

2шт.

9

S8660S00A

PISTON

- clutch

1шт.

13

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, flat

8шт.

14

S2050S00F

LARGE PLATE

PLATE - faced

8шт.

15

S8690S00F

SPRING

- compression

12шт.

16

S9850S00F

HUB

- clutch

1шт.

17

S2100S00F

RING, SNAP

RING - snap

1шт.

18

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

4шт.

19

S2230S00F

BEARING

- thrust

2шт.

20

S2030S00F

BEARING, ROLLER

BEARING - needle roller

1шт.

21

S8700S00A

PINION

GEAR - drive

1шт.
