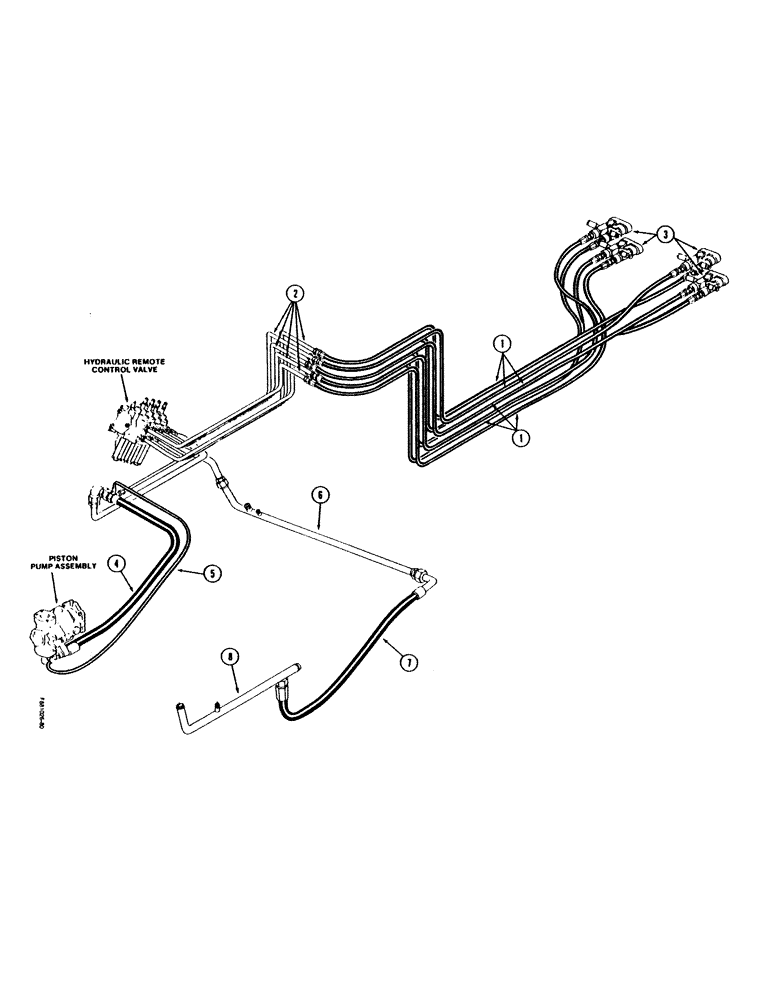

Запчасти Case IH 9170 (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

1

Remote Hydraulic Hoses, Pg 8-9, 8-11

1шт.

2

Remote Hydraulic Tubes, Pg 8-9, 8-11

1шт.

3

Remote Hydraulic Couplers, Pg 8-53

1шт.

4

Pump to Valve Supply Hose, Pg 8-3

1шт.

5

Pump to Valve load Sense Hose, Pg 8-3

1шт.

6

Crossover Return Tube, Pg 8-3

1шт.

7

Return Hose, Pg 8-3

1шт.

8

Pump to Tank Return Tube, Pg 8-3

1шт.
