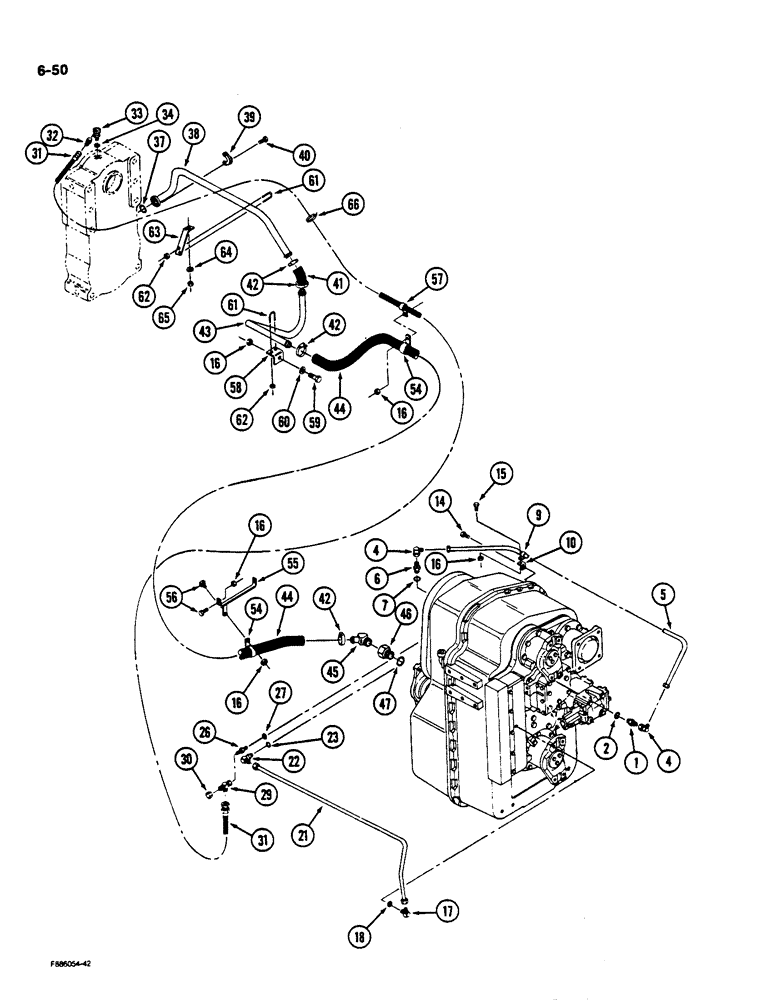

Запчасти Case IH 9170 (6-50) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE, IF EQUIPPED (06) - POWER TRAIN

1

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 x 3/4 inch thread, Includes: Ref. 2

1шт.

2

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

4

31-619

ELBOW

- 90 degree, 3/4 x 3/4 inch thread

2шт.

5

90-6889T1

TUBE,.5" OD

- lubrication

1шт.

6

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 3/4 inch, Includes: Ref. 7

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

9

31-1775

CLAMP

- tube, support

1шт.

10

90-6894T1

SUPPORT

BRACKET - mounting, clamp

1шт.

14

SM8121240

BOLT

BOLT - hex, M12 x 1.75 x 40 mm

1шт.

15

113-36

BOLT - hex, 3/8 NC x 3/4 inch

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

17

31-2200

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16 x 3/4 inch, Includes: Ref. 18

1шт.

18

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

90-6691T1

TUBE,.5" OD

- lubrication

1шт.

22

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, 7/8 x 3/4 inch thread, Includes: Ref. 23

1шт.

23

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

26

31-432

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 x 3/4 inch, Includes: Ref. 27

1шт.

27

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4 x 3/4 x 3/4 inch thread

1шт.

30

218-755

CAP,37 Degree, 3/4"-16

1шт.

31

31-2753

HOSE

- pressure, transmission to PTO transfer case, 113 inch

1шт.

32

31-2537

FITTING

CONNECTOR - straight, orificed

1шт.

33

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 3/4 x 3/4 inch, Includes: Ref. 34

1шт.

34

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

37

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

1шт.

38

90-6868T1

HYD TUBE,1" OD

TUBE - suction, PTO transfer case to hose

1шт.

39

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

40

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

41

31-2757

HOSE,1.00" ID x 4.00"

Suction; Order S118383X, and Cut to Required Length 1.00" ID x 4.00"

1шт.

42

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

4шт.

43

90-6883T1

TUBE,1" OD

- suction, hose to hose

1шт.

44

31-2783

HOSE,1.00" ID x 68.00"

Suction, Tube to Transmission 1.00" ID x 68.00"

1шт.

45

31-2778

FITTING

ELBOW - 45 degree, 1 NPT x 1 inch hose

1шт.

46

31-2777

FITTING

CONNECTOR - straight, 1 inch NPT x 1-5/8 inch thread, Includes: Ref. 47

1шт.

47

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-15/32 x 1/8 inch

1шт.

54

31-1349

MOUNTING CLIP

CLAMP - hose

3шт.

55

90-6881T1

SUPPORT

BRACKET - support, clamp mount

1шт.

56

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

57

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

58

90-6878T1

BRACKET - mounting, clamp

1шт.

59

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

60

113-307

X

WASHER - flat, 3/8 x 1 x 5/64 inch

1шт.

61

19-6258

U-BOLT

- tube mounting, 1/4 NC x 1 x 1-3/4 inch

2шт.

62

113-3081

NUT - hex, lock, 1/4 inch NC

4шт.

63

90-6869T1

BRACKET - mounting, U-bolt

1шт.

64

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

65

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

66

50-2037T1

STRAP

- nylon

1шт.
