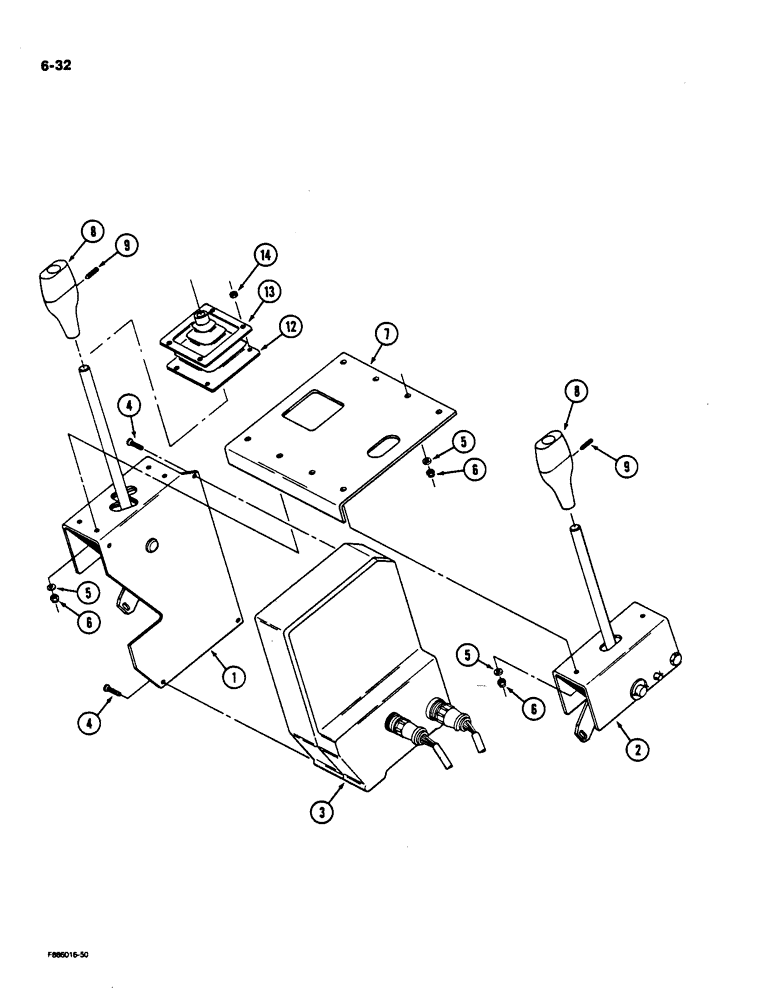

Запчасти Case IH 9170 (6-32) - TRANSMISSION SHIFT CONTROLS, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL ASSEMBLY - mode, See Figure 6-34

1шт.

2

REF

INSTRUCTION

CONTROL ASSEMBLY - pulser, See Figure 6-36

1шт.

3

60-6133T1

BOX

CONTROLLER - transmission, electronic, cab

1шт.

60-6570T1R

REMAN ELECT CONTROL

9170 FROM S/N 17900650 TO JCB0003599 (9/88-6/89), Reman for New P/N 60-6133T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

60-6132T1

BOX

CONTROLLER - transmission, electronic, ROPS

1шт.

Prior to P.I.N. JCB0001961, also order a new MPH magnetic sensor, 60-6085T1.

1шт.

4

113-3018

SCREW - tapping, pan head, No. 10 x 3/4 inch

4шт.

5

113-305

WASHER - flat, 1/4 inch

14шт.

6

113-3081

NUT - lock, 1/4 inch NC

14шт.

7

60-5058T1

SUPPORT

BRACKET - adapter, control mounting

1шт.

8

60-6036T1

KNOB

KNOB - shift handle

2шт.

9

113-60726

SCREW - set, No. 8 NC x 3/8 inch

2шт.

12

60-5847T1

BOOT

- bellows (ROPS only)

2шт.

13

60-5846T1

RETAINER

- boot (ROPS only)

2шт.

14

19-5564

LOCK NUT,#6-32, GB

NUT - lock, No. 6 NC (ROPS only)

8шт.
