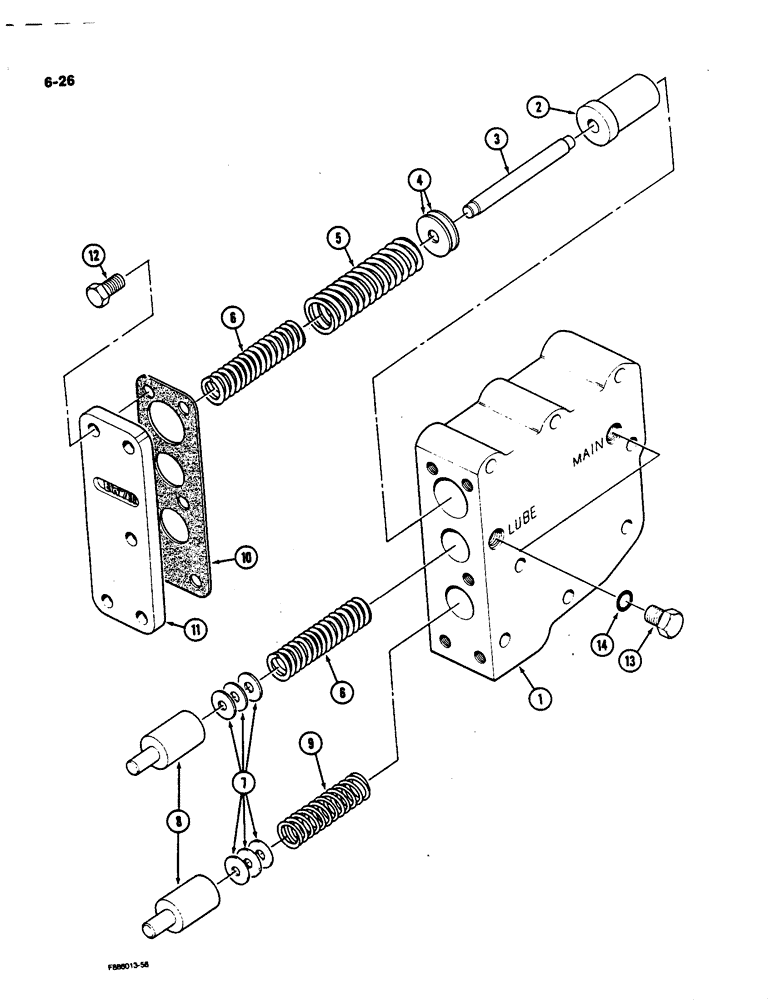

Запчасти Case IH 9170 (6-26) - TRANSMISSION, REGULATOR VALVE (CONTD) (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 22 on Figure 6-16, 1 - 20 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 16 on Figure 6-28, and 1 - 35 on Figure 6-30.

1шт.

S7000S00F

VALVE

ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

S7040S00F

VALVE BODY

BODY - regulator valve

1шт.

2

S7030S00F

VALVE

- regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

- compression

1шт.

6

S7050S00F

SPRING

- compression

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

- lube

1шт.

9

S7070S00F

SPRING

- compression

1шт.

10

S7090S00F

GASKET

- valve cover

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

11

S7110S00F

COVER

- valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, M8 x 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

- O-ring boss, Includes: Ref. 14

2шт.

14

S1040S00F

O-RING

- plug

2шт.

S1670S00F

GASKET

KIT transmission, Includes: Ref. 10

1шт.
