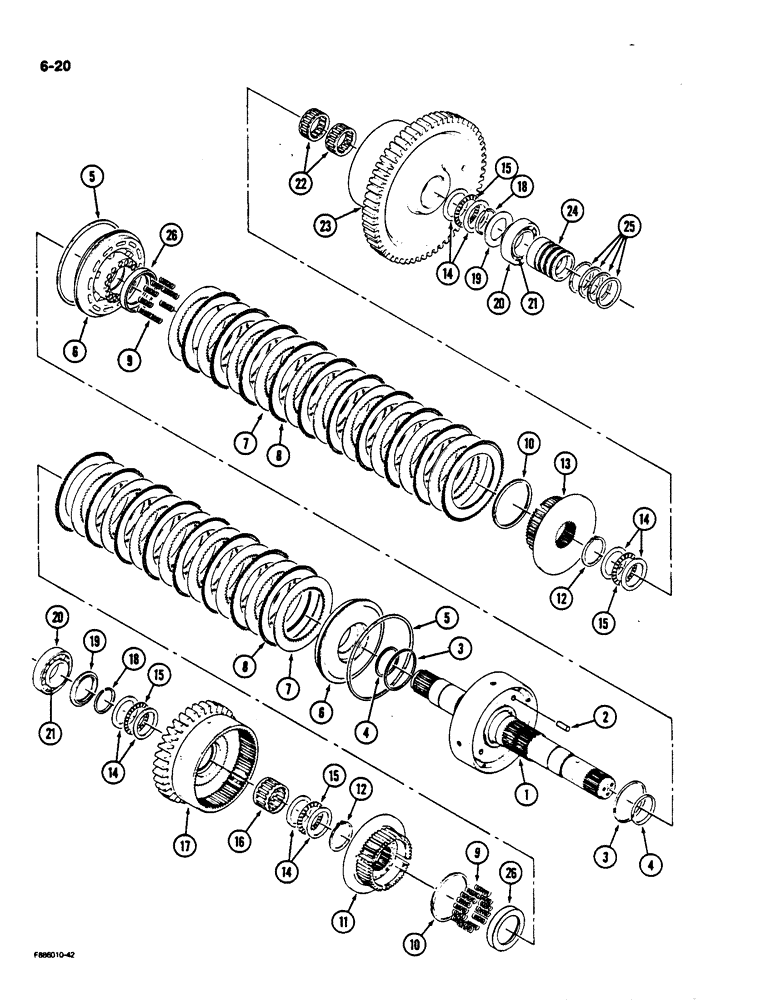

Запчасти Case IH 9170 (6-20) - TRANSMISSION, 8 INCH CLUTCH PACK (CONTD) (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 22 on Figure 6-16, 1 - 20 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 16 on Figure 6-28, and 1 - 35 on Figure 6-30.

1шт.

S4000S02F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 8 inch, Includes: Ref. 1 - 26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 2

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

- piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

4

S4410S00F

RING

- piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

5

S4430S00F

RING

- sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

6

S4180S02F

PISTON

- clutch

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

7

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, flat, 2.4 mm thick

1шт.

Of the Steel Plates, Ref 7; a total of 18 pieces must be used.

1шт.

7

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, flat, 2.1 mm thick

1шт.

Of the Steel Plates, Ref 7; a total of 18 pieces must be used.

1шт.

8

S4080S00F

LARGE PLATE

PLATE - faced

18шт.

9

S4440S00F

SPRING

- return, piston

22шт.

10

S4390S00F

RING, SNAP

RING - retaining

2шт.

11

S4100S01G

HUB

- clutch

1шт.

12

S2100S00F

RING, SNAP

RING - snap

2шт.

13

S4380S01G

HUB

- clutch

1шт.

14

S2200S00F

BEARING WASHER

WASHER - thrust

8шт.

15

S2230S00F

BEARING

- thrust

4шт.

16

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

17

S4210S00F

PINION

GEAR - output (38 Teeth)

1шт.

18

S2240S00F

RING, SNAP

RING - retaining

2шт.

19

S4040S00F

SPACER

- bearing

2шт.

20

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

2шт.

21

ST2016A

BEARING

CONE ASSEMBLY - bearing

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - needle

2шт.

23

S4170S00F

PINION

GEAR - output (59 Teeth)

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

- sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

26

S4530S01F

LARGE PLATE

PLATE - retaining, spring

2шт.

GASKET KIT transmission, Includes: Ref. 3, 4, 5 and 25

1шт.
