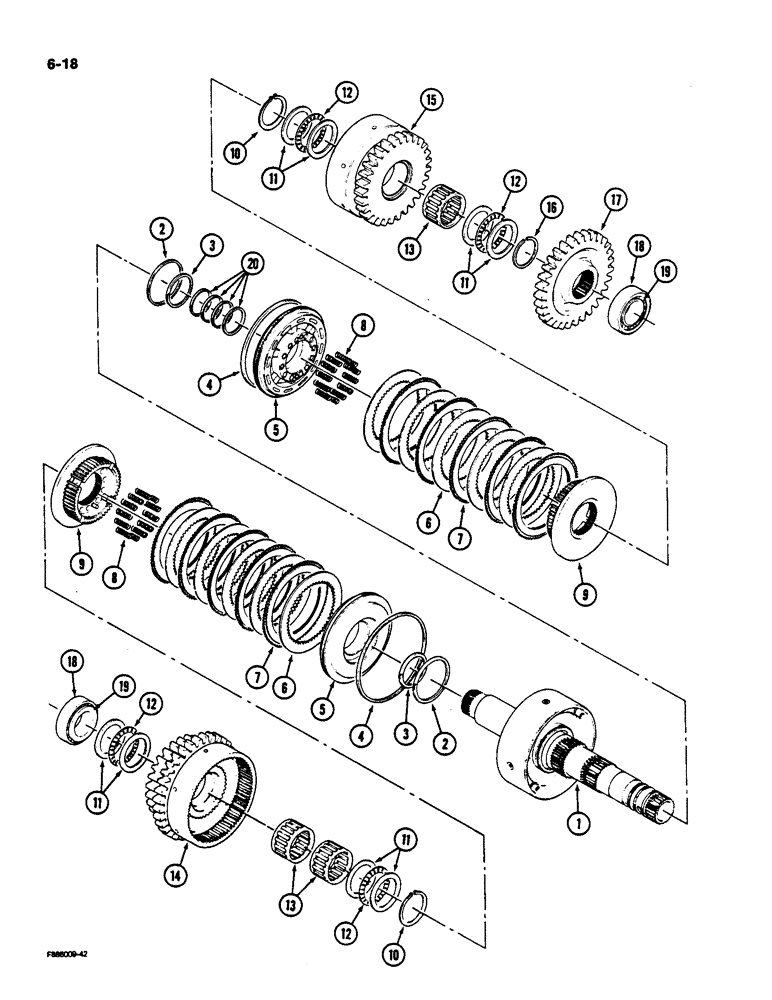

Запчасти Case IH 9170 (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6563T91
TRANSMISSION
ASSEMBLY
1шт.
Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 22 on Figure 6-16, 1 - 20 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 16 on Figure 6-28, and 1 - 35 on Figure 6-30.
1шт.
S3000S00F
CLUTCH HOUSING
CLUTCH PACK ASSEMBLY - 7 inch, 2nd, Includes: Ref. 1 - 20
1шт.
1
S3900S00F
DRUM SHAFT
SHAFT ASSEMBLY - drum
1шт.
2
S2620S00F
RING
- piston
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
3
S2610S00F
RING
- piston
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
4
S2630S00F
RING
- sealing
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
5
S2180S00F
PISTON
- clutch
2шт.
Of the Steel Plates, Ref 6; a total of 18 pieces must be used.
1шт.
6
S2090S00F
CLUTCH DISC,2.1mm Thk
PLATE - steel, flat, 2.1 mm thick
1шт.
Of the Steel Plates, Ref 6; a total of 18 pieces must be used.
1шт.
7
S2050S00F
LARGE PLATE
PLATE - faced
10шт.
8
S2640S00F
SPRING
- return, piston
24шт.
9
S2850S00F
HUB
- clutch
2шт.
10
S2100S00F
RING, SNAP
RING - snap
2шт.
11
S2200S00F
BEARING WASHER
WASHER - thrust, bearing
8шт.
12
S2230S00F
BEARING
- thrust
4шт.
13
S2210S00F
BEARING, ROLLER
BEARING - needle
3шт.
14
S3040S00F
PINION
GEAR - counter (34 Teeth/26 Teeth)
1шт.
15
S2280S00F
PINION
GEAR - drive (29 Teeth)
1шт.
16
S2240S00F
RING, SNAP
RING - retaining
1шт.
17
S3030S00F
PINION
GEAR - input (31 Teeth)
1шт.
18
1-3296
BEARING CUP,3.7402" OD x 0.9252"
CUP - bearing
2шт.
19
1-3297
ROLLER BEARING,2.1654" ID x 1.1417"
CONE ASSEMBLY - bearing
2шт.
Part of Transmission Gasket Kit P/N S1670S00F.
1шт.
S1670S00F
GASKET
KIT transmission, Includes: Ref. 2, 3, 4 and 20
1шт.
Выбрано товаров: 31
