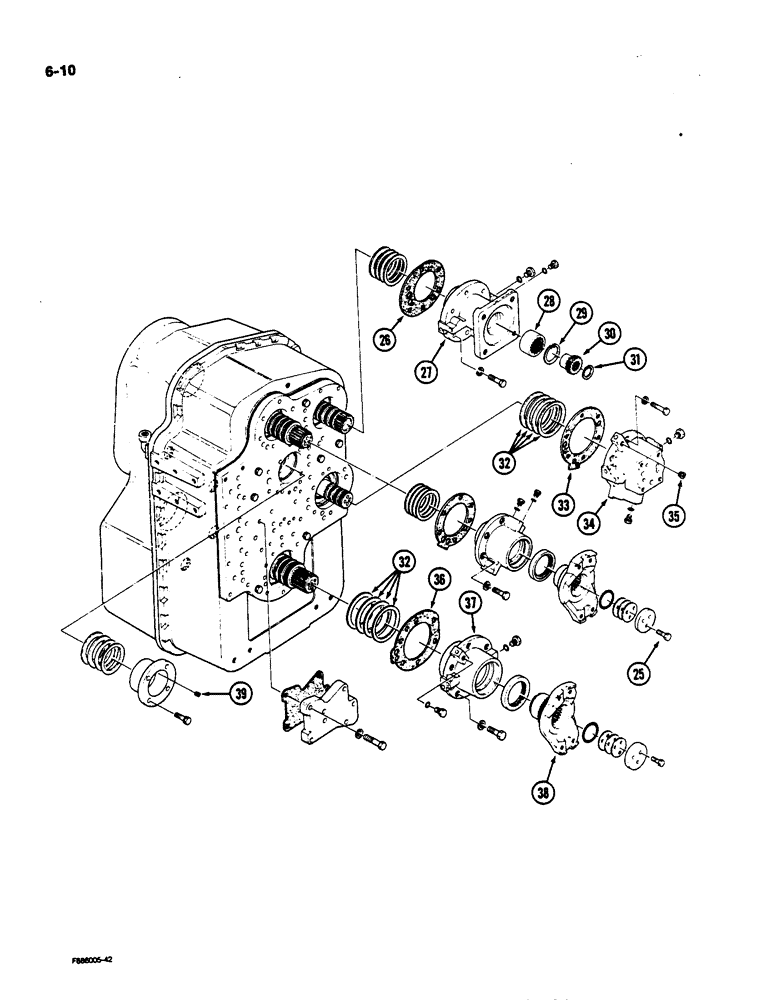

Запчасти Case IH 9170 (6-10) - TRANSMISSION (CONTD) (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 22 on Figure 6-16, 1 - 20 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 16 on Figure 6-28, and 1 - 35 on Figure 6-30.

1шт.

25

SM8134035

BOLT

BOLT - hex, M10 x 1.25 x 35 mm, Grade 10.9

3шт.

26

33-1468T1

GASKET

- pump support

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

27

33-1443T1

SUPPORT

- oil pump

1шт.

28

33-1444T1

COUPLING

- pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING - snap

1шт.

30

33-1448T1

ADAPTER

- pump drive

1шт.

31

33-1447T1

RING, SNAP

RING - snap

1шт.

32

33-1460T1

SHIM

- bearing, 0.10 mm thick

1шт.

32

33-1461T1

SHIM

- bearing, 0.30 mm thick

1шт.

32

33-1462T1

SHIM

- bearing, 0.50 mm thick

1шт.

32

33-1463T1

SHIM

- bearing, 0.70 mm thick

1шт.

32

33-1475T1

SHIM

- bearing, 0.15 mm thick

1шт.

33

33-1433T1

GASKET

- clutch coliector

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

1шт.

36

33-1426T1

GASKET

- bearing retainer

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1429T1

YOKE

- output, rear

1шт.

39

33-1439T1

PLUG

- orifice

2шт.

S1670S00F

GASKET

KIT transmission, Includes: Ref. 26, 33 and 36.

1шт.
