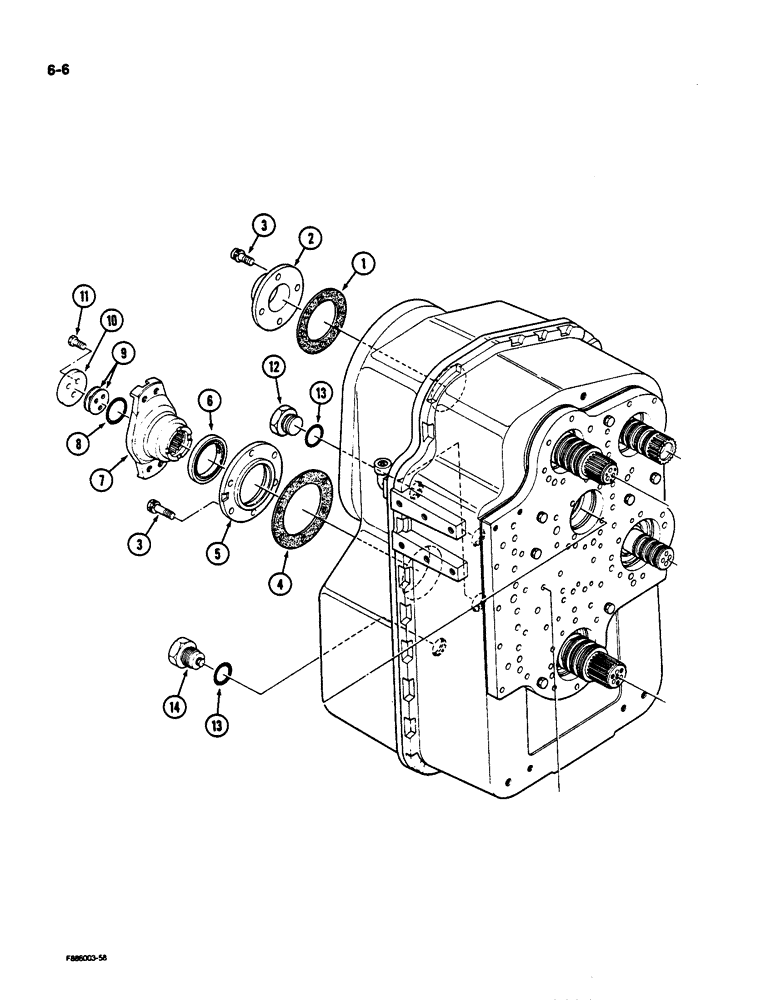

Запчасти Case IH 9170 (6-06) - TRANSMISSION (CONTD) (06) - POWER TRAIN

90-6563T91

TRANSMISSION

ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 22 on Figure 6-16, 1 - 20 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 16 on Figure 6-28, and 1 - 35 on Figure 6-30.

1шт.

1

33-1470T1

GASKET

- PTO shaft cover

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

2

33-1442T1

COVER

- PTO shaft (Without PTO)

1шт.

3

SM8124230

BOLT

BOLT - hex, M12 x 1.25 x 30 mm

10шт.

4

33-1417T1

GASKET

- bearing retainer

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

5

33-1418T1

RETAINER

- bearing

1шт.

6

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

7

33-1420T1

YOKE

- output, rear

1шт.

8

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

9

33-1450T1

SHIM

- yoke, 0.10 mm thick

1шт.

9

33-1451T1

SHIM

- yoke, 0.30 mm thick

1шт.

10

33-1432T1

WASHER

- yoke retainer

1шт.

11

SM8134235

BOLT

BOLT - hex, M12 x 1.25 x 35 mm

3шт.

12

S1010S00F

PLUG, DRAIN

PLUG - O-ring boss, Includes: Ref. 13

3шт.

13

S1080S00F

O-RING

- plug

4шт.

14

S1090S00F

PLUG

- magnetic, Includes: Ref. 13

1шт.

S1670S00F

GASKET

KIT transmission, Includes: Ref. 1, 4, 6 and 8.

1шт.
