(6-058) - PTO ASSEMBLY, CONTROL VALVE

Запчасти Case IH 9150 (6-058) - PTO ASSEMBLY, CONTROL VALVE (06) - POWER TRAIN

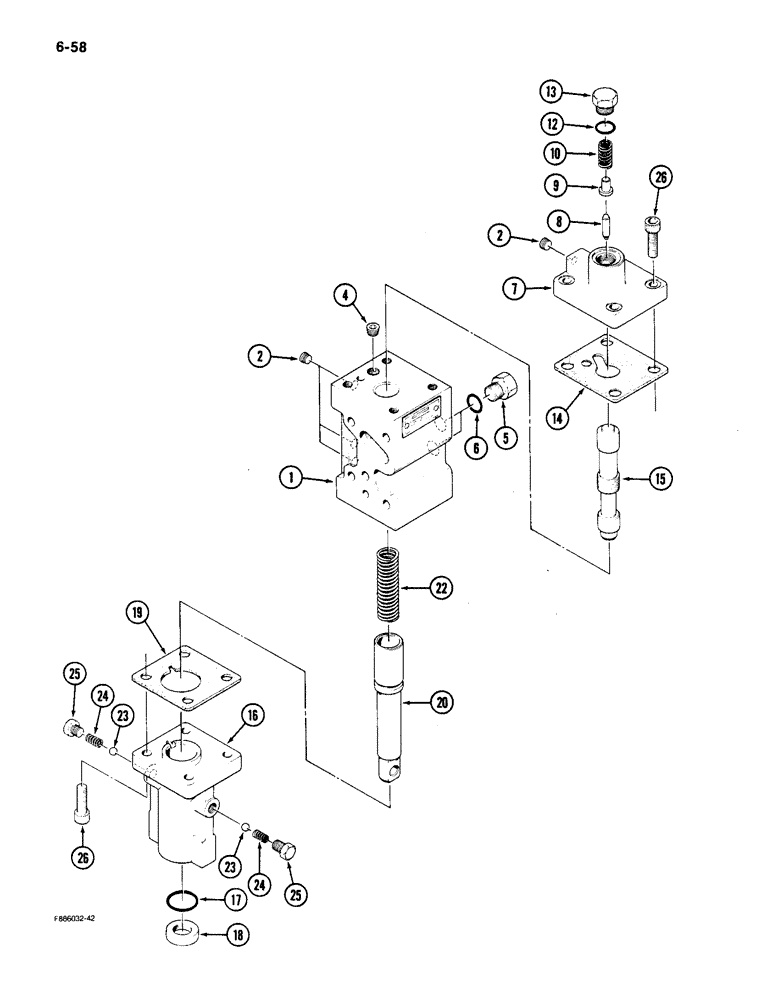

Схема запчастей Case IH 9150 - (6-058) - PTO ASSEMBLY, CONTROL VALVE (06) - POWER TRAIN
18
23
22
24
4
14
24
2
2
13
7
26
10
19
12
17
25
8
23
16
5
26
1
20
6
9
15
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-7045T91

REAR PTO ASSY

PTO ASSEMBLY (Continued), Includes: Ref. 1 - 26 and valve assembly

1шт.

S9500S00F

VALVE

ASSEMBLY - control, PTO

1шт.

1

S9580S00F

BODY

- modulator

1шт.

2

S9720S00F

PLUG

- pipe

4шт.

4

S9730S00F

PLUG

- orifice

1шт.

5

S1390S00F

PLUG

- oil port

2шт.

6

S1320S00F

O-RING

- plug

2шт.

7

S9610S00F

COVER

- valve

1шт.

8

S9620S00F

PISTON

SPOOL - reducing, valve

1шт.

9

S9540S00F

GASKET

PIN

1шт.

10

S9650S00F

SPRING

- compression

1шт.

12

S9660S00F

GASKET

O-RING - plug

1шт.

13

S9670S00F

PLUG

- o-ring boss

1шт.

14

S9600S00F

GASKET

- cover

1шт.

Part of PTO Overhaul Kit P/N S9870S00F

1шт.

15

S9590S00F

PISTON

SPOOL - modulator

1шт.

16

S9550S00F

CAP

COVER - control stem

1шт.

17

S9540S00F

GASKET

O-RING - seal

1шт.

18

S9530S00F

SEAL

- control stem

1шт.

19

S9570S00F

GASKET

- stem cover

1шт.

Part of PTO Overhaul Kit P/N S9870S00F

1шт.

20

S9520S00F

STEM

- control

1шт.

22

S9560S00F

SPRING

- compression

1шт.

23

S9690S00F

BALL

- steel

2шт.

24

S9700S00F

SPRING

- compression

2шт.

25

S9710S00F

PLUG

2шт.

26

S9680S00F

SCREW

BOLT - hex

8шт.
