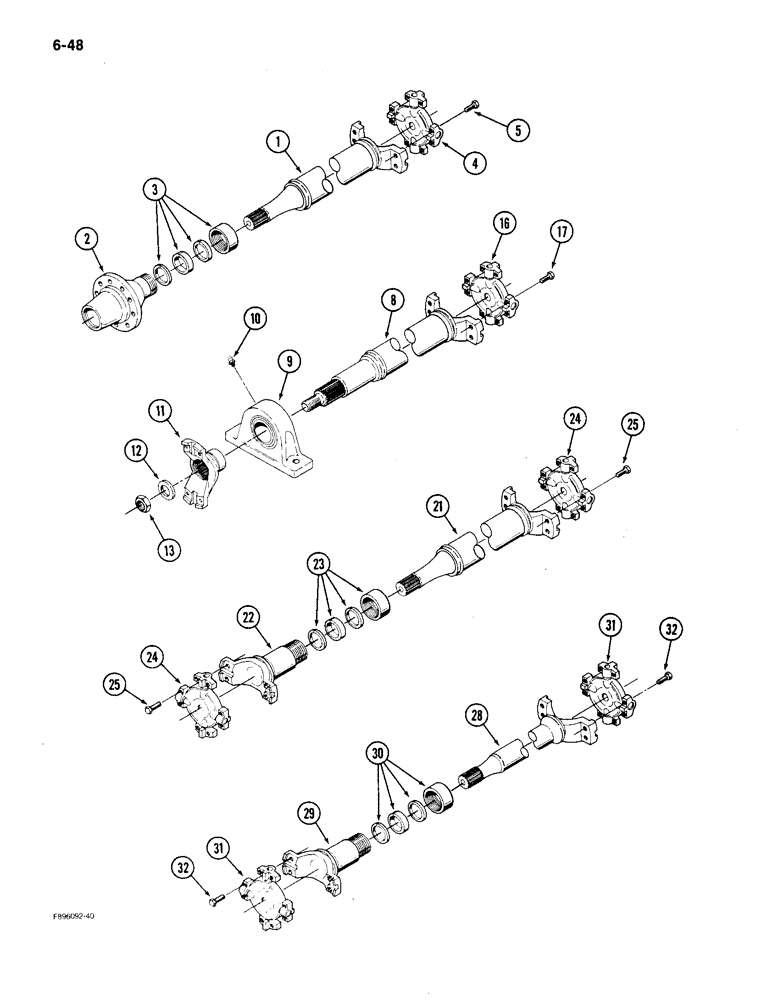

Запчасти Case IH 9150 (6-048) - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-6185T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, input, engine to transmission, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3843T1

RING, SET

SEAL ASSEMBLY - shaft retainer

1шт.

4

90-5882T2

U-JOINT SPIDER

SPIDER ASSEMBLY - shaft, 7C, Includes: Ref. 5

1шт.

5

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-6182T92

SHAFT ASSY.

SHAFT ASSEMBLY - drive, intermediate shaft to rear axle, Includes: Ref. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

9

90-4657T1

BEARING CARRIER

- pillow block, Includes: Ref. 10

1шт.

10

31-93

FITTING

- grease, 1/8 inch PT

1шт.

11

90-4658T1

JAW

YOKE - shaft

1шт.

12

19-701

WASHER,1 1/4"

- flat, 1-1/4 x 3 x 11/64 inch

1шт.

13

14-69

LOCK NUT

NUT - lock

1шт.

16

A182457

JOINT

SPIDER ASSEMBLY - shaft, Includes: Ref. 17

1шт.

17

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-6180T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, intermediate, transmission to rear axle shaft, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

23

2-3843T1

RING, SET

SEAL ASSEMBLY - shaft retainer

1шт.

24

90-5882T1

BEARING ASSY

SPIDER ASSEMBLY - shaft, Includes: Ref. 25

2шт.

25

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-6181T92

DRIVE SHAFT

SHAFT ASSEMBLY - front axle, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

30

2-3843T1

RING, SET

SEAL ASSEMBLY - shaft retainer

1шт.

31

90-5882T1

BEARING ASSY

SPIDER ASSEMBLY - shaft, Includes: Ref. 32

2шт.

32

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.
