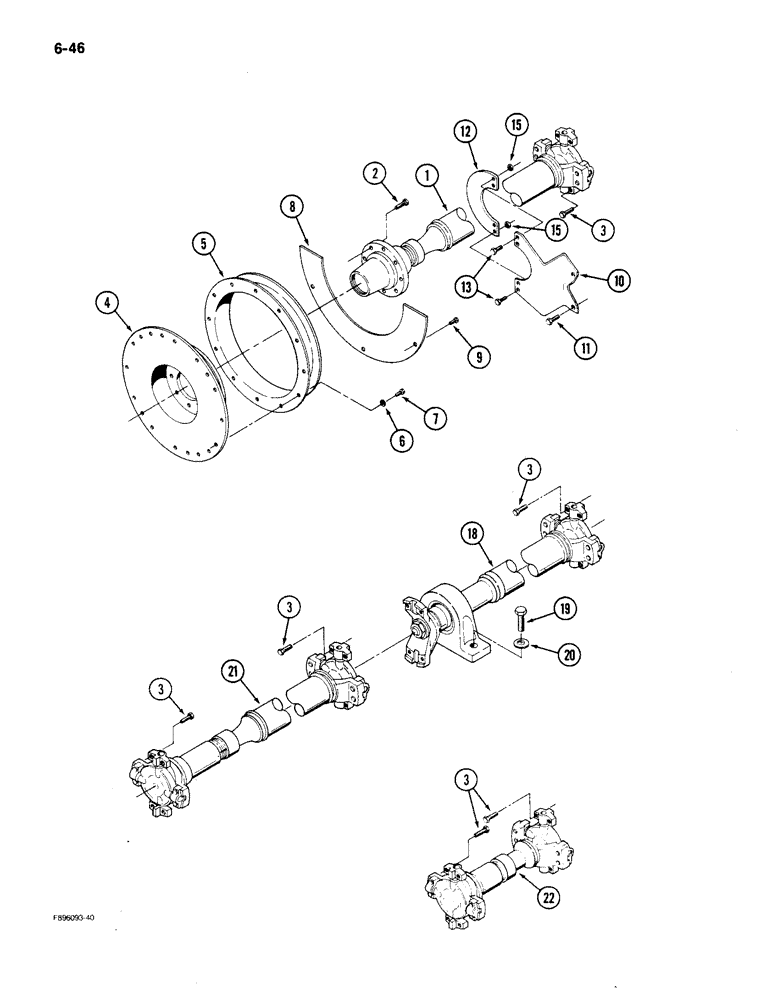

Запчасти Case IH 9150 (6-046) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

DRIVE SHAFT - input, 7C, engine to transmission (See Figure 6-48)

1шт.

2

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

3

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

24шт.

4

90-1272T1

DAMPER

- vibration

1шт.

5

90-6190T1

LARGE PLATE

SLINGER - flywheel

1шт.

6

19-5941

WASHER,13/32" x 3/4" x .220", HDN

- flat, hardened

12шт.

7

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

8

90-6188T1

COVER

- flywheel housing

2шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex, 3/8 NC x 7/8 inch, Grade 8

6шт.

10

90-6657T2

SUPPORT

BRACKET - drive shaft guard

1шт.

11

19-43

BOLT,1/2" - 13 x 1", Gr 5

- hex, 1/2 NC x 1 inch

2шт.

12

50-2852T1

LARGE PLATE

PLATE - drive shaft shield

1шт.

13

9418918

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

4шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

18

REF

INSTRUCTION

DRIVE SHAFT - rear axle, with hanger bearing (See Figure 6-48)

1шт.

19

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

20

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

21

REF

INSTRUCTION

DRIVE SHAFT - rear axle, intermediate (See Figure 6-48)

1шт.

22

REF

INSTRUCTION

DRIVE SHAFT - front axle (See Figure 6-48)

1шт.
