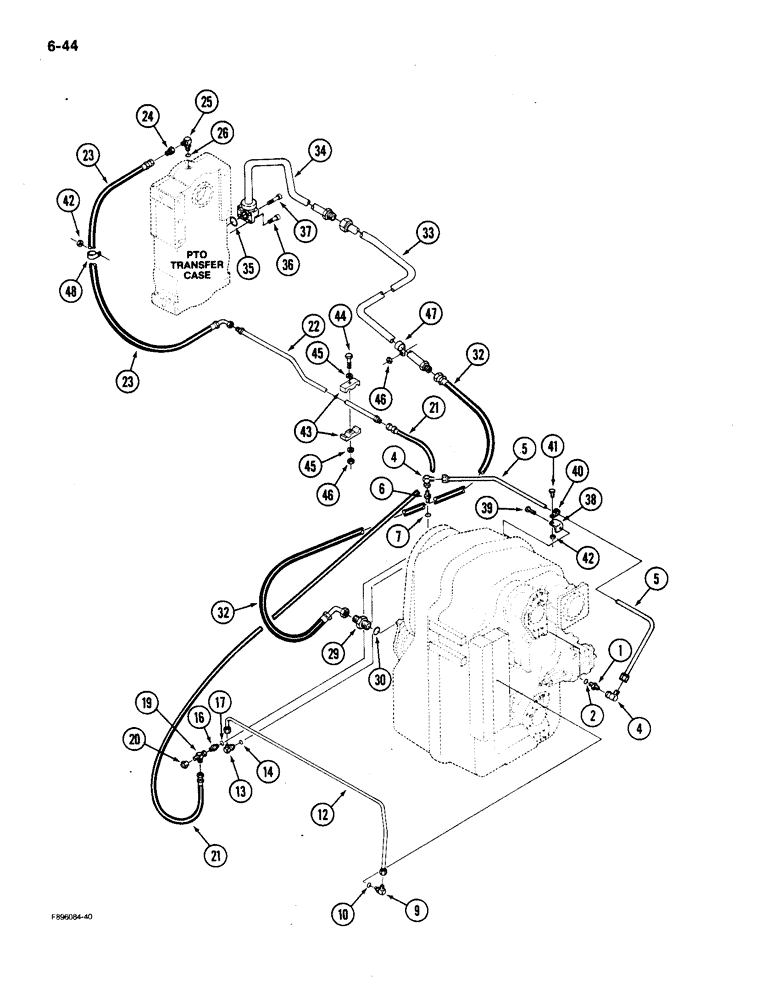

Запчасти Case IH 9150 (6-044) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE, IF EQUIPPED (06) - POWER TRAIN

1

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 2

1шт.

2

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

4

31-619

ELBOW

- 90 degree, adjustable, 3/4 inch thread

2шт.

5

90-6889T1

TUBE,.5" OD

- transmission regulator valve to PTO control valve

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 7 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

9

31-2200

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, 9/16 x 3/4 inch thread, Includes: Ref. 10

1шт.

10

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve

1шт.

13

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8 x 3/4 inch thread, Includes: Ref. 14

1шт.

14

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

16

31-432

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 3/4 inch thread, Includes: Ref. 17

1шт.

17

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4 inch thread

1шт.

20

218-755

CAP,37 Degree, 3/4"-16

1шт.

21

31-2669

HOSE ASSY.

HOSE - transmission to tube, 28 inch

1шт.

22

90-6635T1

TUBE,0.625" OD x 46.75" L

- hose to hose

1шт.

23

31-2668

HOSE ASSY.

HOSE - tube to PTO transfer case, 40 inch

1шт.

24

31-2537

FITTING

CONNECTOR - orificed

1шт.

25

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, 3/4 inch thread, Includes: Ref. 26

1шт.

26

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

29

31-2659

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/8 x 1-5/16 inch thread, Includes: Ref. 30

1шт.

30

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

32

31-2682

HOSE ASSY.

HOSE - transmission to tube, 39 inch

1шт.

33

90-6630T1

TUBE,1.25" OD

- hose to tube

1шт.

34

90-5898T2

TUBE,1.25" OD

- tube to PTO transfer case

1шт.

35

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

1шт.

36

19-6217

SCREW,Hex Skt, 7/16" - 14 x 1 1/4", Gr 8

BOLT - socket, 7/16 NC x 1-1/4 inch, Grade 8

2шт.

37

19-6209

HEX SOC SCREW,7/16"-14 x 2 1/4"

BOLT - socket, 7/16 NC x 2-1/4 inch, Grade 8

2шт.

38

90-6894T1

SUPPORT

BRACKET - tube support

1шт.

39

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

40

31-1775

CLAMP

- tube

1шт.

41

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces 113-206) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

42

425-106

NUT,3/8"-16, Cl 5

(Replaces 129-103) 3/8"-16, G5

2шт.

43

50-2531T1

CLAMP

- split halves

4шт.

44

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

45

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

46

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

47

31-1348

CLAMP

- tube

1шт.

48

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- tube

1шт.
