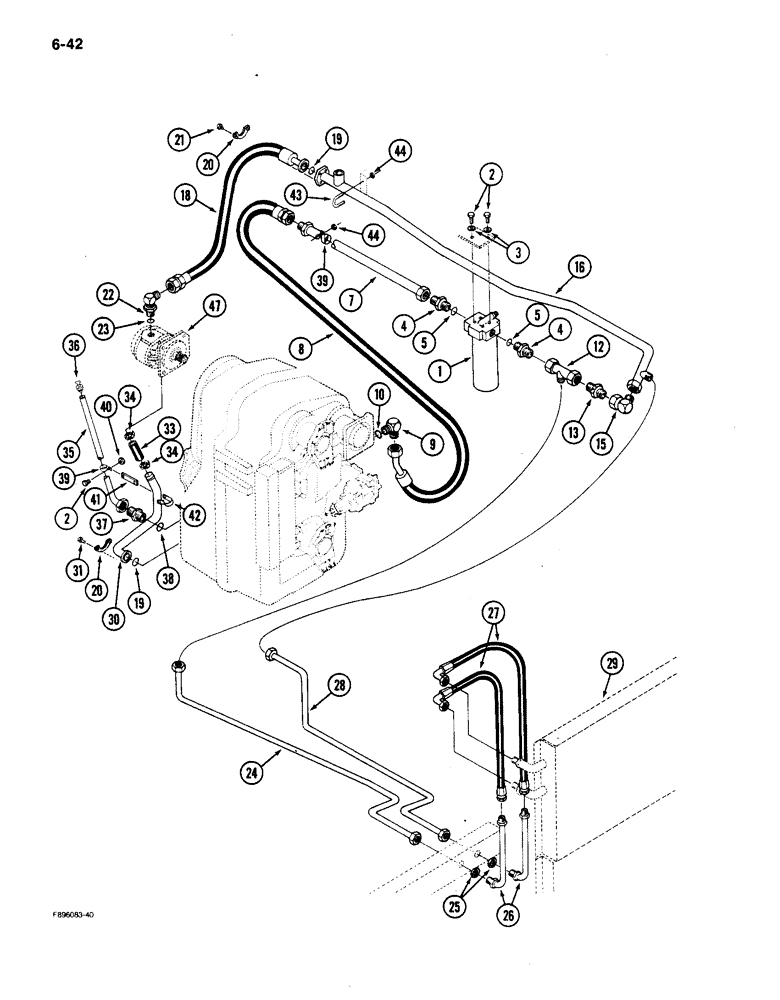

Запчасти Case IH 9150 (6-042) - TRANSMISSION LUBRICATION, TRANSMISSION TO OIL COOLER (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER ASSEMBLY - oil (See Figure 8-20)

1шт.

2

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

4шт.

3

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

4

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 5

2шт.

5

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

2шт.

7

50-3135T1

HYD TUBE

TUBE -, Serial Range: filter-hose

1шт.

8

31-2818

HOSE

- tube to transmission, 24 inch

1шт.

9

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1-5/16-12 inch thread, Incl. Ref. 10

1шт.

10

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

12

50-3136T1

HYD TUBE

TUBE - filter to check valve

1шт.

13

90-6578T1

VALVE POPPET

VALVE - check

1шт.

15

31-2718

ADAPTER,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

ELBOW - 90 degree, adjustable, 1-5/8-12 inch thread

1шт.

16

50-3139T1

HYD TUBE

TUBE - check, Serial Range: valve-hose

1шт.

18

31-2842

HOSE,31.75mm ID x 850.9mm L, SAE 100R1

- tube to transmission, 35-1/2 inch

1шт.

19

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

2шт.

20

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

4шт.

21

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

22

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 23

1шт.

23

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

24

50-3203T1

TUBE ASSY.

TUBE - tube to oil cooler tube

1шт.

25

31-2375

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, tube, 1-1/8 - 12 inch

2шт.

26

90-5968T1

TUBE,0.75" OD x 15.45", 3.71" L

- to oil cooler hose

2шт.

27

31-2478

HOSE

- tubes to oil cooler, 50 inch

2шт.

28

50-3202T1

HYD TUBE

TUBE - cooler, Serial Range: tube-tube

1шт.

29

REF

INSTRUCTION

COOLER - oil (See Figure 8-22)

1шт.

30

90-7064T1

TUBE,1.5" OD

- transmission to pump (Without PTO)

1шт.

30

90-7063T1

TUBE,1.5" OD

- transmission to pump (With PTO)

1шт.

31

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

33

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-4482T1 and, Serial Range: cut-length)

1шт.

34

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

35

90-6545T1

TUBE,1.25" OD

- dipstick

1шт.

36

90-6546T1

DIPSTICK

- oil check

1шт.

37

31-401

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - straight, 1-5/8 inch thread, Includes: Ref. 38

1шт.

38

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

39

31-1348

CLAMP

- tube

2шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

41

90-6588T1

SUPPORT

BRACKET - support, clamp mounting

1шт.

42

31-1349

MOUNTING CLIP

CLAMP - tube

1шт.

43

19-153

U-BOLT

- tube support, 5/16 NC x 1-3/8 x 2-1/2 inch

1шт.

44

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

47

REF

INSTRUCTION

PUMP ASSEMBLY - transmission lubrication (See Figure 6-28)

1шт.
