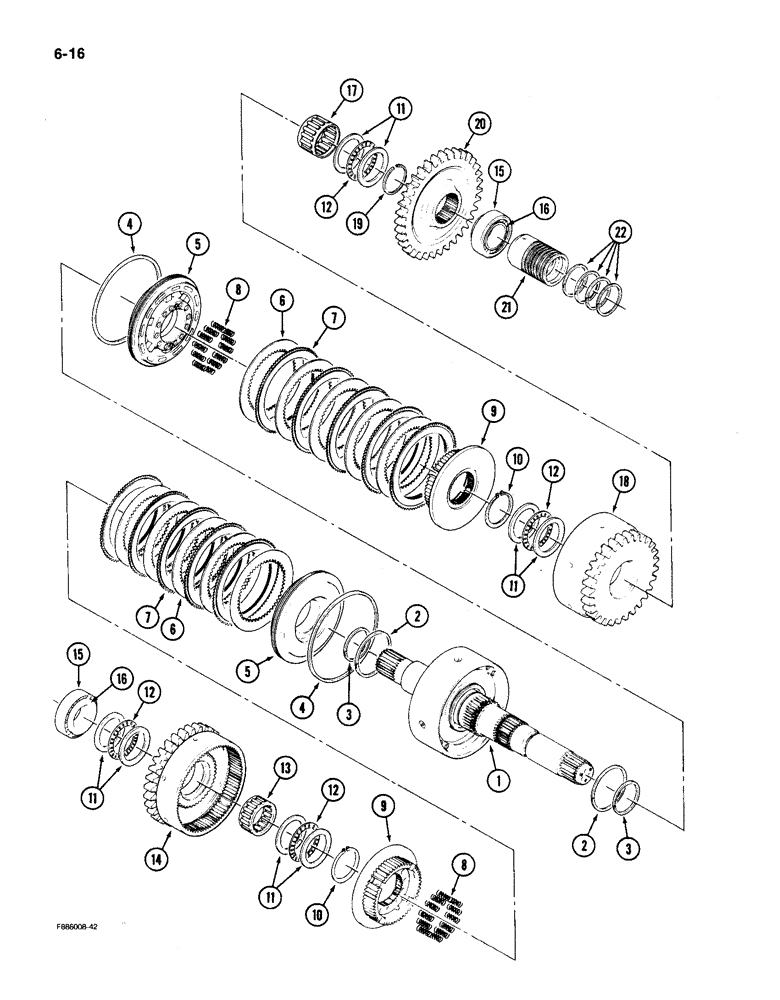

Запчасти Case IH 9150 (6-016) - TRANSMISSION, 7 INCH CLUTCH PACK, INPUT (06) - POWER TRAIN

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 22 and clutch pack assembly

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S2000S00F

ASSEMBLY

SPARE PART CLUTCH PACK ASSEMBLY - 7 inch input, Includes: Ref. 1 - 22

1шт.

1

S2900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

3

S2610S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

4

S2630S00F

RING

RING - sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

5

S2180S00F

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 6; a total set of 10 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref. 6; a total set of 10 pieces must be used.

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

10шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00F

HUB

HUB - clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

BEARING - thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING roller, 25 mm Wide

1шт.

14

S2040S00F

PINION

GEAR - drive (32 Tooth)

1шт.

15

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

16

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

17

S2210S00F

BEARING, ROLLER

BEARING - roller, 38 mm Wide

1шт.

18

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

19

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

20

S2270S00F

PINION

GEAR - input (35 Tooth)

1шт.

April 1990 and after a 41 tooth gear p/n S2270S01F was produced in the unit.

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING - sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.
