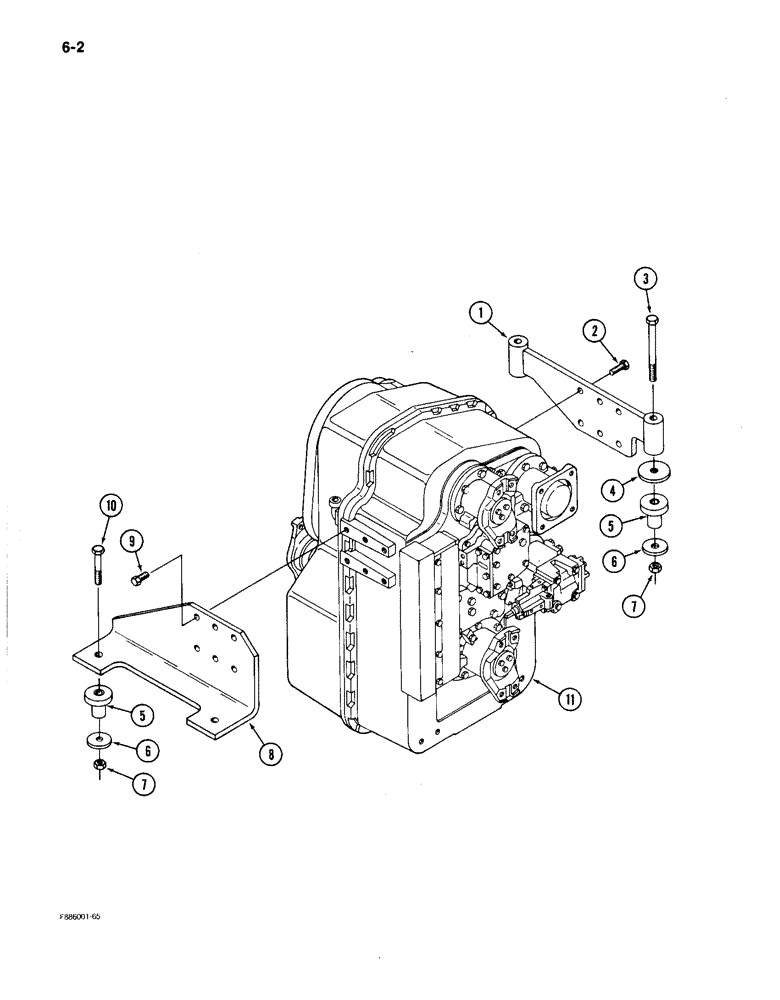

Запчасти Case IH 9150 (6-002) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

90-6252T1

BRACKET

MOUNT - transmission, left

1шт.

2

19-57

BOLT,5/8" - 11 x 1 3/4", Gr 5

BOLT - hex, 5/8 NC x 1-1/4 inch

6шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

BOLT - hex, 3/4 NC x 7-1/2 inch

2шт.

4

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

WASHER - flat, 3/4 x 3-3/4 x 3/16 inch

2шт.

5

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator

4шт.

6

19-5781

WASHER

WASHER - flat, 3/4 x 2-3/4 x 5/16 inch

4шт.

7

19-85

LOCK NUT

NUT - hex lock, 3/4 inch NC

4шт.

8

90-6255T1

SUPPORT

MOUNT - transmission, right

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

10

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

BOLT, Hex, 3/4"-10 x 4", G5

2шт.

11

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY (See Figures 6-4 - 6-32)

1шт.

11

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

11

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.
