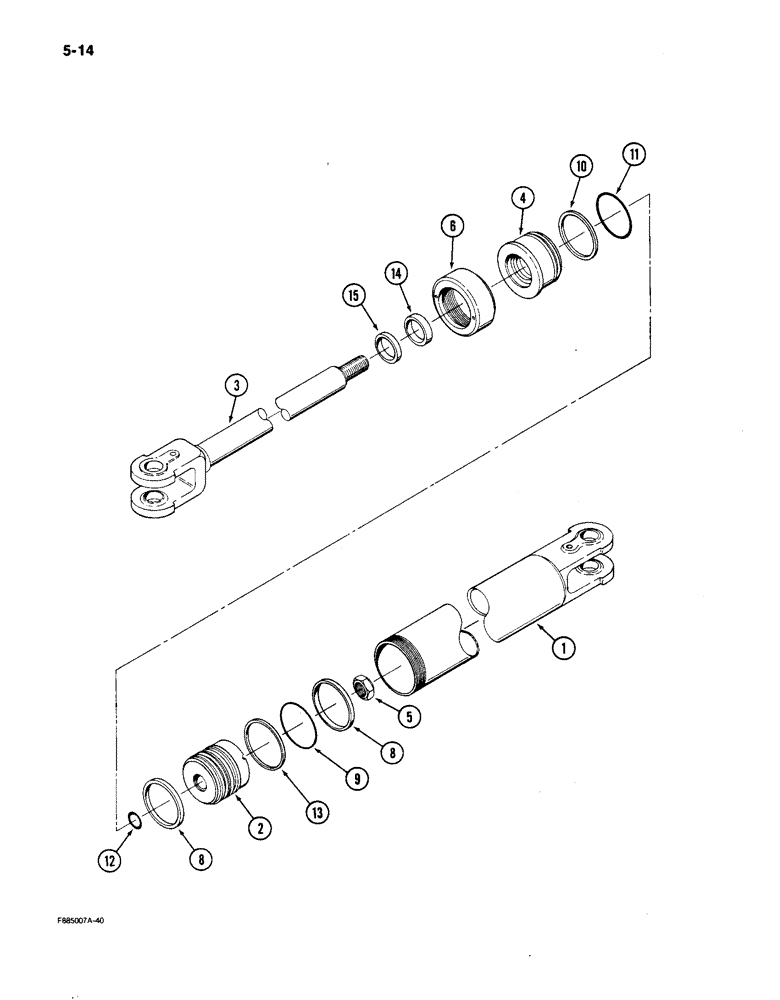

Запчасти Case IH 9150 (5-14) - STEERING CYLINDER (05) - STEERING

50-2292T93

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 15

1шт.

1

50-2293T2

HYD CYL SLEEVE

BARREL - cylinder body

1шт.

2

50-3026T1

JACK PISTON

PISTON - cylinder

1шт.

3

50-3243T1

PISTON ROD

ROD - cylinder

1шт.

4

50-2297T1

CYLINDER END CAP

GUIDE - rod

1шт.

5

19-5578

LOCK NUT

- hex, lock

1шт.

6

50-2298T1

CLAMP

COLLAR - locking, rod guide

1шт.

35-1592T91

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 8 - 15

1шт.

8

2-1287

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 6.35mm Thk

RING - wear, piston

2шт.

9

2-1289

SEAL,71.02mm ID x 76.86mm OD x 2.92mm Thk

- piston

1шт.

10

50-2299T1

SEAL,69.85mm ID x 76.2mm OD x 1.09mm Thk

- backup, seal

1шт.

11

18-1006

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- seal, rod guide

1шт.

12

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal, piston

1шт.

13

18-1010

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- seal, piston

1шт.

14

1-7796

SEAL

- rod

1шт.

15

1-7768

WIPER SEAL

WIPER - dirt, rod

1шт.
