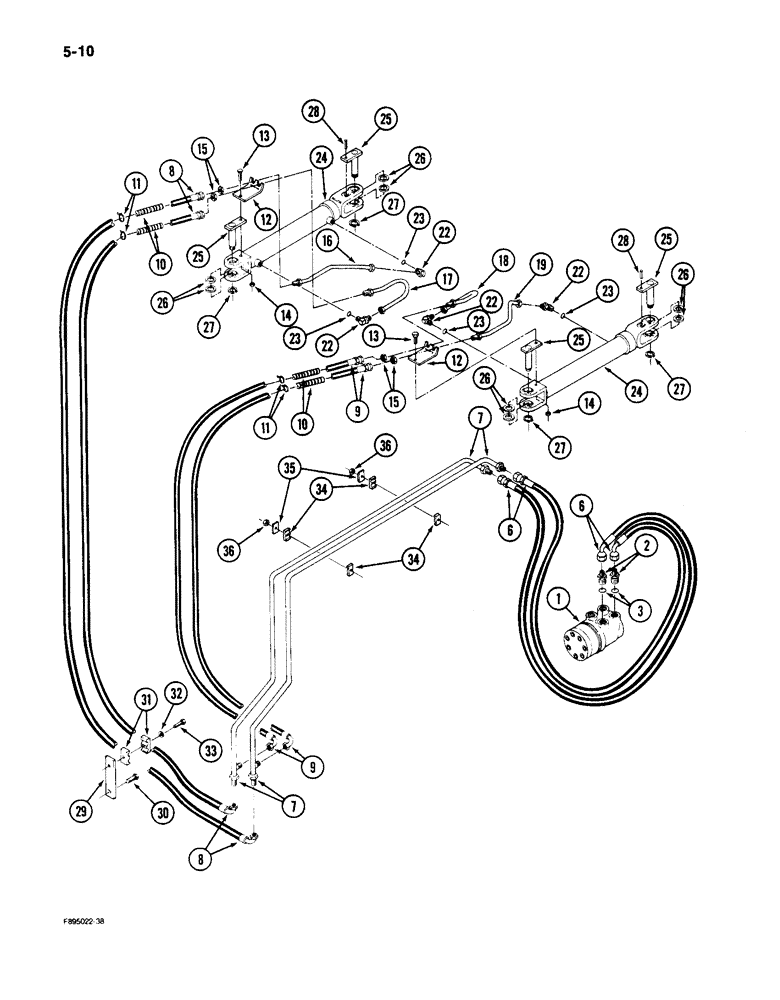

Запчасти Case IH 9150 (5-10) - STEERING SYSTEM HYDRAULICS, STEERING CONTROL VALVE TO STEERING CYLINDER (05) - STEERING

1

REF

INSTRUCTION

VALVE - control, steering (See Figure 5-12)

1шт.

2

31-361

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-1/16 x 3/4 inch thread, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

6

31-2499

HOSE ASSY.

HOSE - valve to tubes, 34 inch

2шт.

7

50-3205T1

HYD TUBE

TUBE -, Serial Range: hose-hose

2шт.

8

31-1769

HOSE

- tube to steering cylinder, right, 50 inch

2шт.

9

31-1288

HOSE

- tube to steering cylinder, left, 24 inch

2шт.

10

50-2696T1

HOSE

GUARD - hose, protector, 20 inch (Order S119717 conduit and, Serial Range: cut-length)

4шт.

11

19-135

CABLE TIE

STRAP - nylon

12шт.

12

50-2608T1

BRACKET

- tube mounting, steering

2шт.

13

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

15

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

16

50-2594T2

TUBE

- steering, supply, right

1шт.

17

50-2596T2

TUBE

- steering, supply, right

1шт.

18

50-2595T2

TUBE

- steering, supply left

1шт.

19

50-2593T2

TUBE

- steering, supply left

1шт.

22

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, 3/4 inch thread, Includes: Ref. 23

4шт.

23

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-14)

2шт.

25

50-1086T1

PIN

- retainer, steering cylinder

4шт.

26

2-3223T1

SPACER

- cylinder mounting

8шт.

27

19-5619

RING, SNAP

RING - snap, cylinder pin

4шт.

28

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

2шт.

29

50-2896T2

ANCHOR

MOUNT - clamp

2шт.

30

19-759

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

- hex, 5/8 NC x 1 inch

2шт.

31

50-2534T1

CLAMP

- split, halves

4шт.

32

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

33

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

34

50-2531T1

CLAMP

- split halves

4шт.

35

50-2532T1

PLATE

- cover, clamp

2шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.
