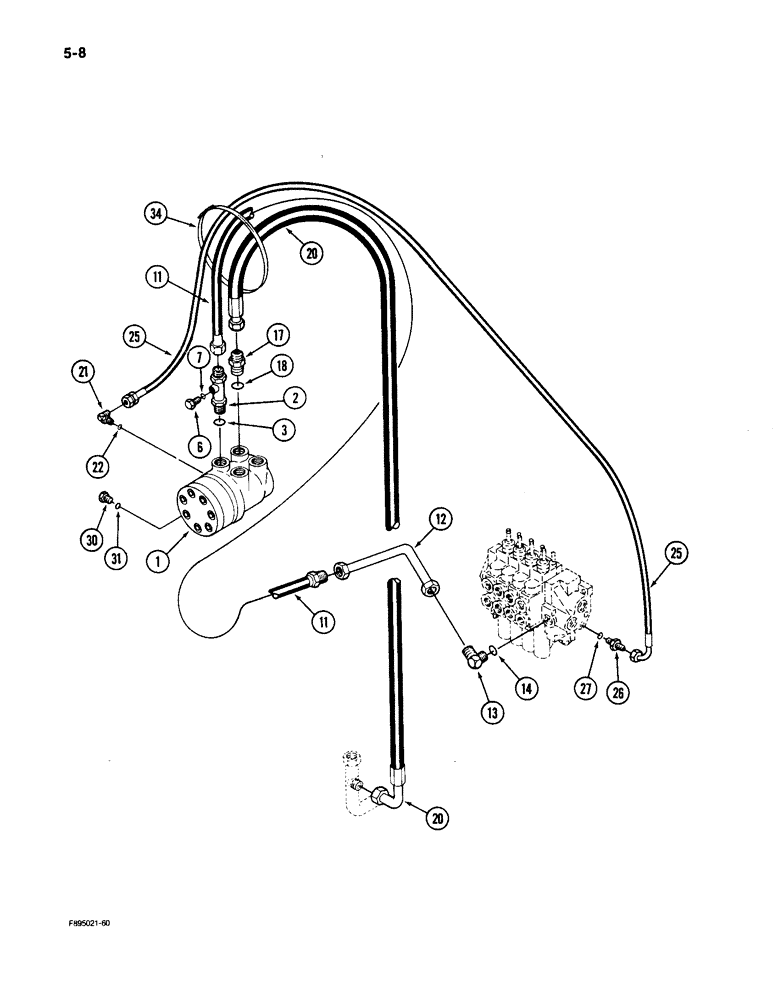

Запчасти Case IH 9150 (5-08) - STEERING SYSTEM HYDRAULIC, VALVE TO STEERING CONTROL VALVE (05) - STEERING

1

REF

INSTRUCTION

VALVE - control, steering

1шт.

2

50-3188T1

FITTING

TEE - adjustable, 1-1/16 x 1-1/16 x 9/16-18 inch thread, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

6

1-3213

PLUG

- o-ring, Includes: Ref. 7

1шт.

7

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

18-537

HOSE

- valve to control valve, 48 inch

1шт.

12

50-2849T2

TUBE

- pressure, hose to control valve

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16 inch flare x O-ring boss, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

20

31-2478

HOSE

- steering valve to hydraulic tank, 50 inch

1шт.

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16 inch thread, Includes: Ref. 22

1шт.

22

31-10-19

O-RING - 23/64 x 5/64 inch

1шт.

25

31-2612

HOSE ASSY.

HOSE - steering valve to control valve, 70 inch

1шт.

26

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread, Includes: Ref. 27

1шт.

27

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

9410356

PLUG

- 1/4 inch straight thread o-ring boss

1шт.

31

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

34

50-3027T1

TUBE ASSY.

STRAP - nylon

1шт.
