Запчасти Case IH 9150 (4-56) - THREE POINT HITCH HARNESSES (04) - ELECTRICAL SYSTEMS

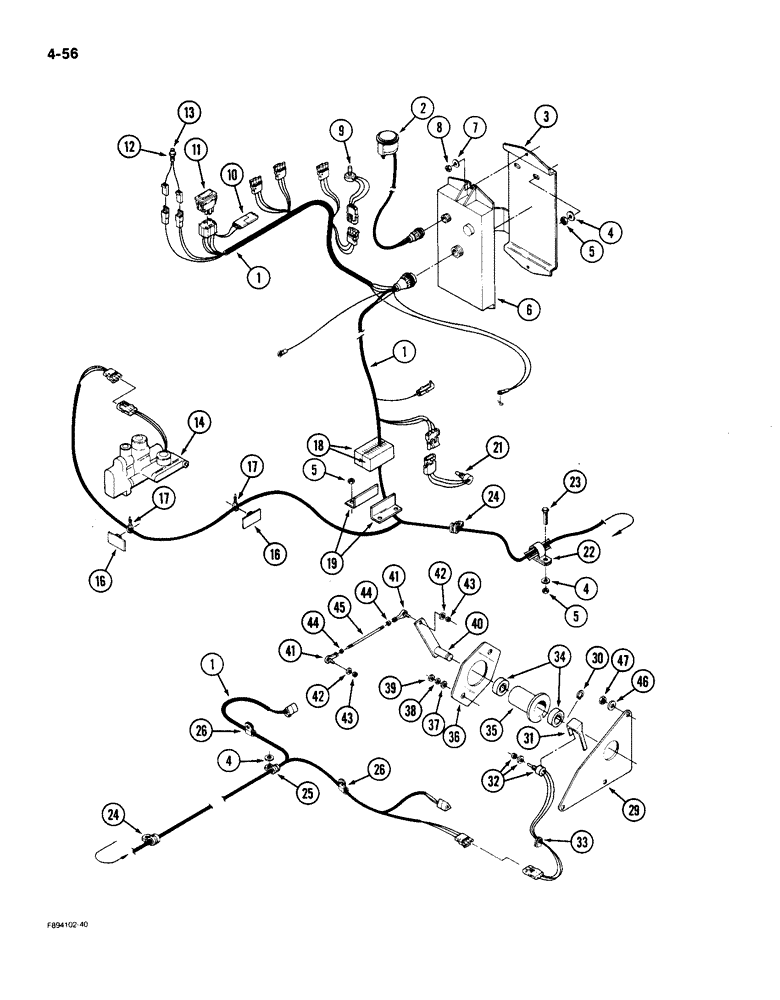

Схема запчастей Case IH 9150 - (4-56) - THREE POINT HITCH HARNESSES (04) - ELECTRICAL SYSTEMS
45
8
4
21
26
37
25
29
46
17
24
42
31
17
4
30
3
13
11
44
41
16
47
5
43
5
23
26
1
4
16
1
38
19
5
22
14
24
10
32
41
39
36
34
40
9
18
6
42
12
1
44
35
2
7
43
33

Артикул

Название

Примечание

Количество

1

60-6022T2

HARNESS

HARNESS - electronic depth control

1шт.

2

A186064

GAUGE

HARNESS - display, seven segment

1шт.

3

60-6120T1

LARGE PLATE

PLATE, LARGE PLATE - mounting, controller

1шт.

4

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

5шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

7шт.

6

60-6136T1

CONTROL

CONTROLLER - three point hitch, electronic

1шт.

60-6136T1C

CORE-MODULE

CORE-MODUL Return Number, CONTROLLER, for N.A. Only

1шт.

7

19-105

WASHER,1/4", SAE

WASHER - flat, 1/4 inch

2шт.

8

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

9

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical

1шт.

10

22-738

DIODE

DIODE - electrical

1шт.

11

1964753C1

SWITCH

SWITCH - rocker, hitch actuating

1шт.

12

60-6111T1

INDICATOR

LIGHT ASSEMBLY - indicator

1шт.

13

23731R1

BULB,C2F, #1893, 14V

BULB - lamp, No.1893

1шт.

14

REF

INSTRUCTION

VALVE - three point hitch (See Figure 8-36)

1шт.

16

22-823

MOUNT

MOUNT - adhesive backed

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

18

60-6066T1

FOAM

FOAM - sealing

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

21

60-6117T1

POTENTIOMETER

Electrical

1шт.

22

31-1349

MOUNTING CLIP

CLAMP - retaining

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch

1шт.

24

31-1776

MOUNTING CLIP

CLAMP - retaining

2шт.

25

31-1775

CLAMP

CLAMP - retaining

1шт.

26

155850H1

CLAMP,3/8", 1/4" Bolt

CLAMP - retaining

2шт.

60-6195T91

HOUSING ASSY.

Potentiometer, Includes: Ref. 29 - 45

1шт.

29

60-6189T1

LARGE PLATE

PLATE, LARGE PLATE - mounting

1шт.

30

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

31

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

32

60-6117T1

POTENTIOMETER

Electrical, Replaces 60-6190T1

1шт.

33

31-2475

GROMMET

GROMMET - wire protection

1шт.

34

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

35

60-6167T2

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

36

60-6169T2

RETAINER

Housing

1шт.

37

19-105

WASHER,1/4", SAE

WASHER - flat, 1/4 inch

2шт.

38

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

2шт.

39

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

40

60-6179T1

LEVER

LEVER - actuating

1шт.

41

A75447

BALL JOINT

JOINT - ball

2шт.

42

19-195

WASHER,#10

WASHER - flat, No. 10 x 9/16 x 3/64 inch

2шт.

43

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 NF

2шт.

44

19-308

NUT,#10 - 32

NUT - hex, No. 10 NF

2шт.

45

60-6176T1

ROD

ROD - actuating

1шт.

46

25709R1

WASHER

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

Выбрано товаров: 45
