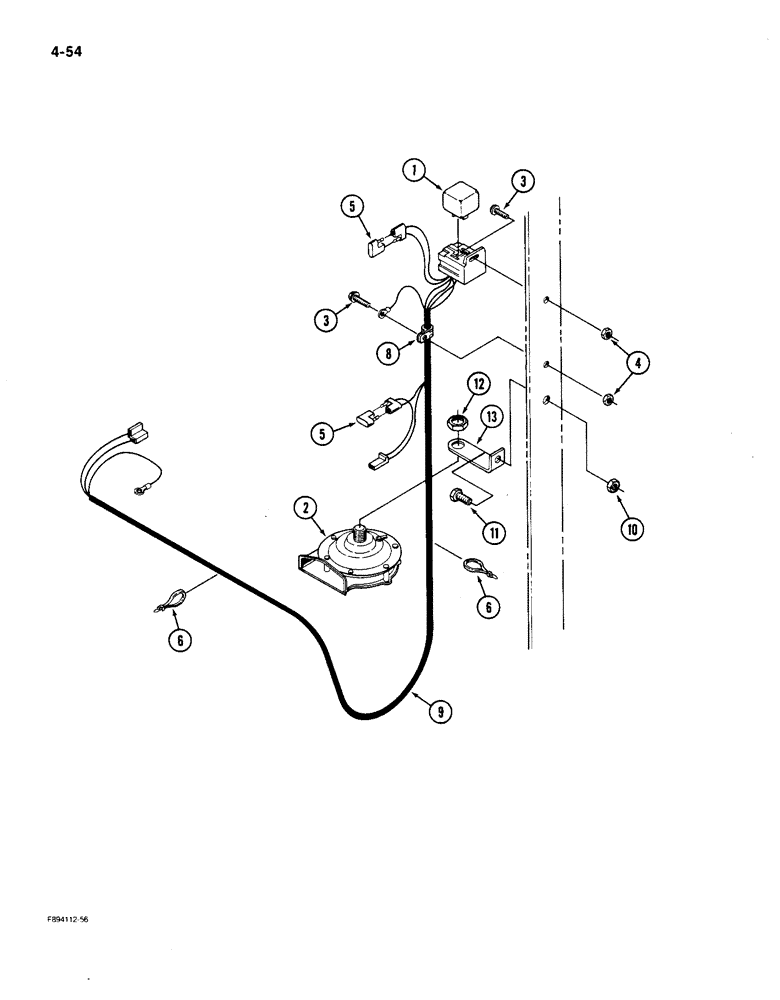

Запчасти Case IH 9150 (4-54) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

35-1752T91

HORN

KIT - horn (Order components), Includes: Ref. 1 - 13

1шт.

1

20-2133T1

RELAY

- electrical, sealed

1шт.

2

29-1003

HORN

- electrical

1шт.

3

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch

2шт.

4

19-5571

SERRATED NUT

- lock, keps, No. 10 NC

2шт.

5

22-738

DIODE

- electrical

2шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

8

32-69

CLAMP

- retaining

1шт.

9

60-6290T1

HARNESS

- horn

1шт.

10

19-508

LOCK NUT

- hex lock, 5/16 inch NC

1шт.

11

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

12

L30866

LOCK NUT

- hex, 7/8 NC

1шт.

13

L73799

BRACKET

- mounting

1шт.
