Запчасти Case IH 9150 (4-40) - FRONT WINDOW WIPER (04) - ELECTRICAL SYSTEMS

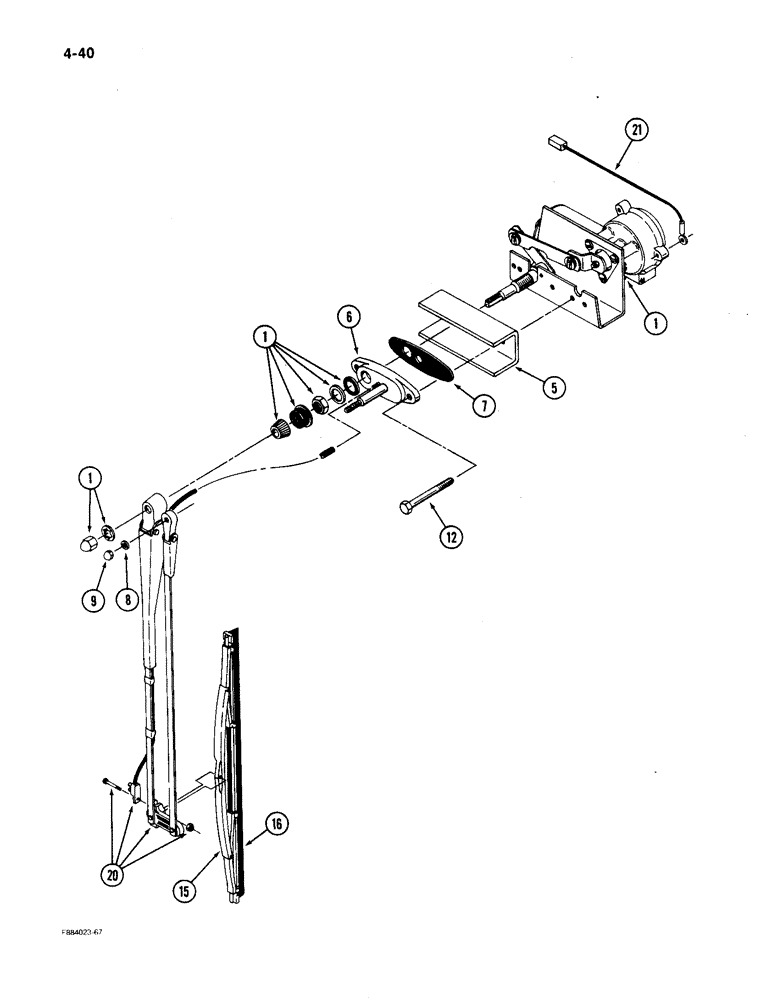

Схема запчастей Case IH 9150 - (4-40) - FRONT WINDOW WIPER (04) - ELECTRICAL SYSTEMS
1
9
15
12
1
7
8
21
5
16
6
20
1

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, front window (See Figure 4-48)

1шт.

5

2-2822T1

SPACER

- wiper mounting

1шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper blade

1шт.

7

2-4190T1

GASKET

- pivot

1шт.

8

2-4191T1

WASHER

- flat

1шт.

9

2-4192T1

NUT

- hex, cap

1шт.

12

114-10

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

- hex, 1/4 NF x 2-1/4 inch

2шт.

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME - wiper blade

1шт.

16

2-4194T1

WIPER BLADE

BLADE - wiper, rubber, 18 inch

1шт.

20

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

21

20-1452T1

ELECTRICAL WIRE

WIRE ASSEMBLY - motor ground

1шт.

Выбрано товаров: 13
