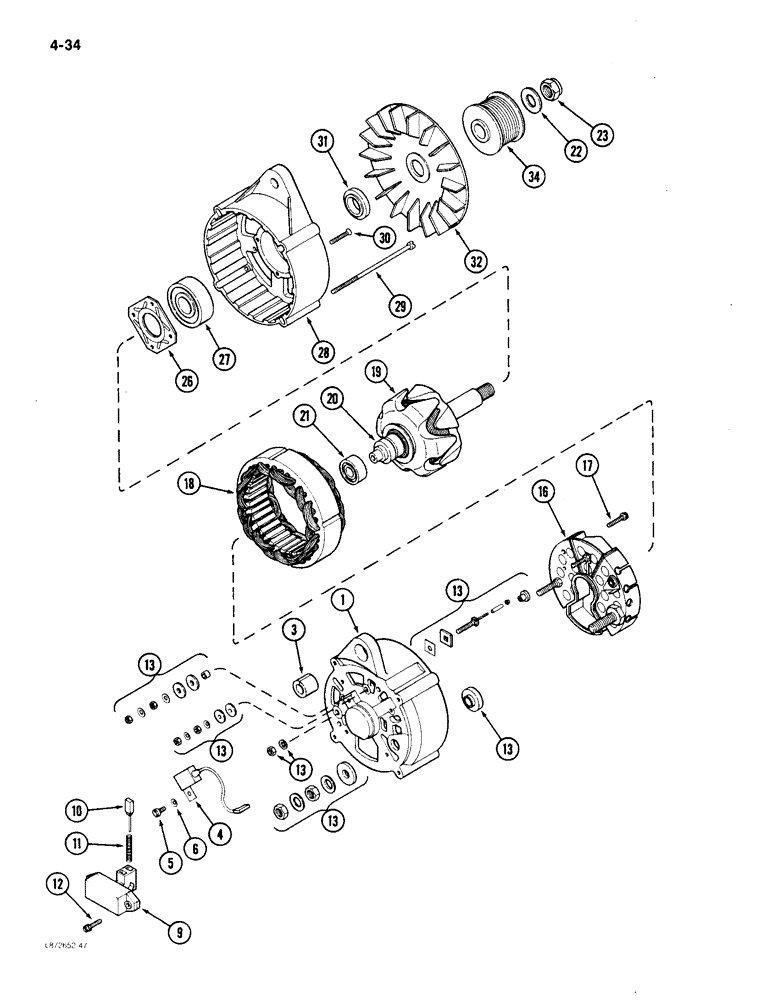

Запчасти Case IH 9150 (4-34) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

91448C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 ampere, Includes: Ref. 1 - 32

1шт.

91448C2

ALTERNATOR

ALTERNATOR N114V-40/110A

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 14V, 110A

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 Volt, 135 Amp

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 100 AMP Alternator

1шт.

104258A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104258A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 35 AMP Alternator

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - alternator

1шт.

5

684857C1

SCREW

SCREW - fillister head, capacitor retaining

1шт.

6

A186196

WASHER

WASHER - retaining screw

1шт.

9

1964733C1

REGULATOR

REGULATOR ASSEMBLY - voltage, Includes: Ref. 10 and 11

1шт.

10

3079394R91

BRUSH SET

BRUSH SET - alternator

1шт.

11

1964734C1

SPRING

SPRING - compression

2шт.

12

A186194

SCREW,M4 x 18mm

SCREW, , Voltage regulator retaining Sltd Truss Hd, M4 x 18, w/LW

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

16

1964732C1

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

17

A187504

SCREW

BOLT - with washer, rectifier bridge retaining

2шт.

18

1964735C1

STATOR

STATOR ASSEMBLY - alternator

1шт.

19

1964728C1

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

195-107

WASHER,9/16"

WASHER - flat, 5/8 x 1-15/32 x 3/32 inch

1шт.

23

131-676

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

26

1964727C1

PLATE

PLATE - retaining, bearing

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - retaining, alternator

4шт.

30

1964750C1

SCREW

SCREW - flat head, retaining

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

34

REF

INSTRUCTION

PULLEY - drive (Order 3046204 from your local Cummins dealer)

1шт.

90-6850T1

V-BELT,0.14" W x 33.50" L, 5 Ribs

Alternator

1шт.
