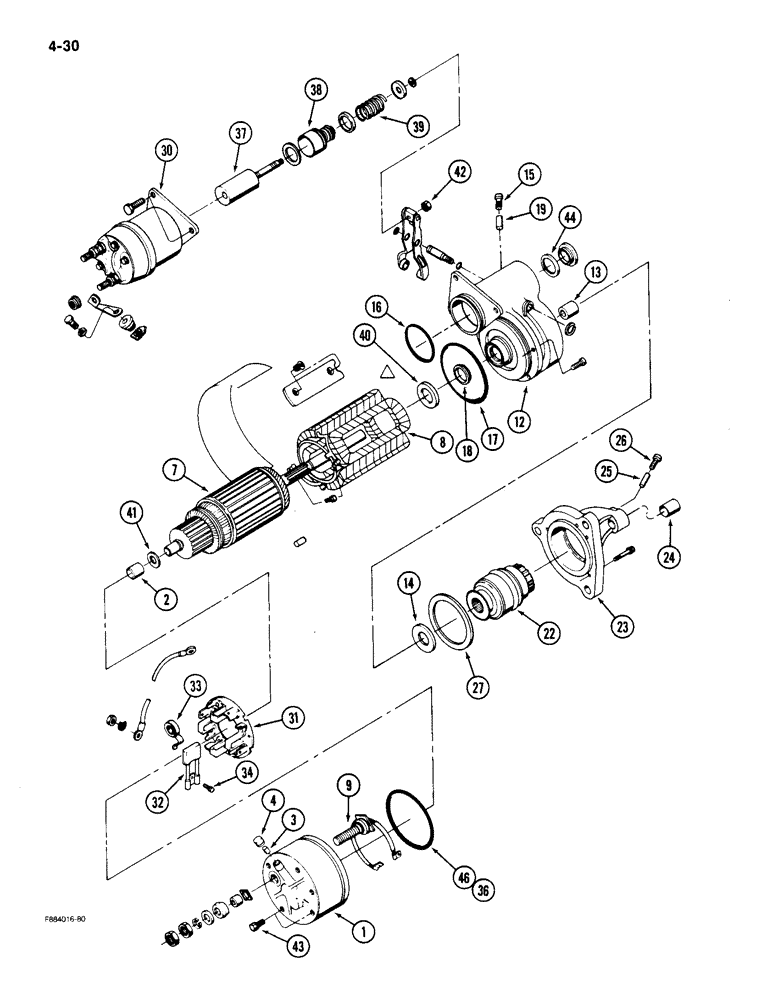

Запчасти Case IH 9150 (4-30) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

20-2384T91

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 1 - 46

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number

1шт.

1

33-1009T91

COVER

COVER - commutator end, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - armature, commutator end

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

3

NSS

NOT SOLD SEPARAT

FELT bearing oil

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

4

NSS

NOT SOLD SEPARAT

CUP oil reservoir

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

7

81772C1

ROTOR

ARMATURE ASSEMBLY - starter

1шт.

8

81771C1

COIL ASSY.

COIL ASSEMBLY - field

1шт.

9

A49764

TERMINAL CONNECTOR

BOLT - terminal, lead

1шт.

12

33-1013T91

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - armature, lever housing

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

14

A185121

WASHER

WASHER - brake

1шт.

15

NSS

NOT SOLD SEPARAT

CUP - oil reservoir

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal, switch

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - seal, lever housing

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - oil lever housing

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

19

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH ASSEMBLY - drive

1шт.

23

A49773

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - armature, drive housing

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

25

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

26

NSS

NOT SOLD SEPARAT

CUP - oil reservoir

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, drive housing

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

30

81773C1

SOLENOID

SWITCH ASSEMBLY - magnetic

1шт.

31

81769C1

BRUSH HOLDER

HOLDER, BRUSH PLATE ASSEMBLY - brush, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BRUSH - starter

4шт.

Part of Brush Package P/N 33-1029T91

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

Part of Brush Package P/N 33-1029T91

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW - brush lead

4шт.

Part of Brush Package P/N 33-1029T91

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - seal, commutator end

1шт.

Part of Brush Package P/N 33-1029T91

1шт.

37

A49757

PLUNGER

PLUNGER - solenoid

1шт.

38

A49589

BOOT

BOOT - plunger cover

1шт.

39

A41242

SPRING

SPRING - return, plunger

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

42

22-1129

JAM NUT

NUT - hex, lock, 5/16 inch NF

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW - keps

6шт.

Part of Bushing Package P/N 33-1030T91

1шт.

44

NSS

NOT SOLD SEPARAT

GASKET - inspection plug

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.

46

NSS

NOT SOLD SEPARAT

O-RING - seal, commutator end

1шт.

Part of Bushing Package P/N 33-1030T91

1шт.
