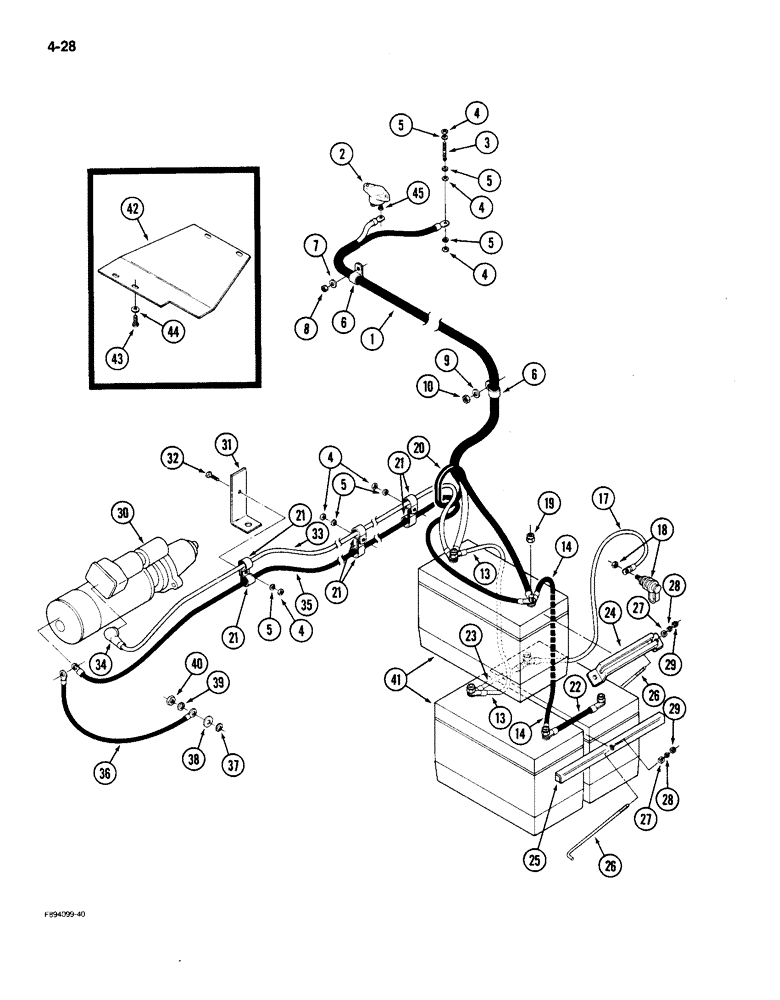

Запчасти Case IH 9150 (4-28) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

20-1972T1

HARNESS

ASSEMBLY - cab power

1шт.

2

20-2041T1

CIRCUIT-BREAKER

CIRCUIT BREAKER - electrical

1шт.

3

60-1880T1

STUD

- ground

1шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

5

19-115

LOCK WASHER,1/4"

1/4"

6шт.

6

32-161

COLLAR CLAMP

CLAMP - retaining

2шт.

7

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

8

19-508

LOCK NUT

- hex lock, 5/16 inch NC

1шт.

9

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

10

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

1шт.

13

20-2094T2

CABLE

- battery

1шт.

14

1-4965

CABLE

- battery

1шт.

17

20-2425T1

CABLE

- battery

1шт.

18

20-2051T1

STUD

TERMINAL - battery jumper

1шт.

19

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

6шт.

20

31-2493

HOSE

GROMMET - protective, 11-1/4 inch (Order 31-2404 and, Serial Range: cut-length)

1шт.

21

32-161

COLLAR CLAMP

CLAMP - retaining

6шт.

22

20-1744T1

CABLE

- battery

1шт.

23

20-1743T1

CABLE

- battery

1шт.

24

70-5525T1

SUPPORT

BRACKET - battery, retaining

1шт.

25

70-5526T1

SUPPORT

BRACKET - angle, battery retaining

1шт.

26

70-5527T1

ROD

- battery, retaining

3шт.

27

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

3шт.

28

19-116

LOCK WASHER,5/16"

5/16"

3шт.

29

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

30

REF

INSTRUCTION

STARTER - engine (See Figures 4-30 and 4-32)

1шт.

31

70-4739T1

SUPPORT

BRACKET - support, clamp

1шт.

32

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

33

20-2347T1

CABLE

- battery

1шт.

34

20-2424T1

BOOT

- cable end

1шт.

35

20-2346T1

CABLE

- battery

1шт.

36

22-33

CABLE

- starter, ground

1шт.

37

19-517

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, external tooth, 5/8 inch NC

1шт.

38

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

40

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

41

BMF31FS

DRY BATTERY

BATTERY - Tractor, 12 volt

3шт.

42

60-4661T1

COVER

- cab power supply

1шт.

43

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

44

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

4шт.

45

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan, No. 10 NC x 3/4 inch

2шт.
