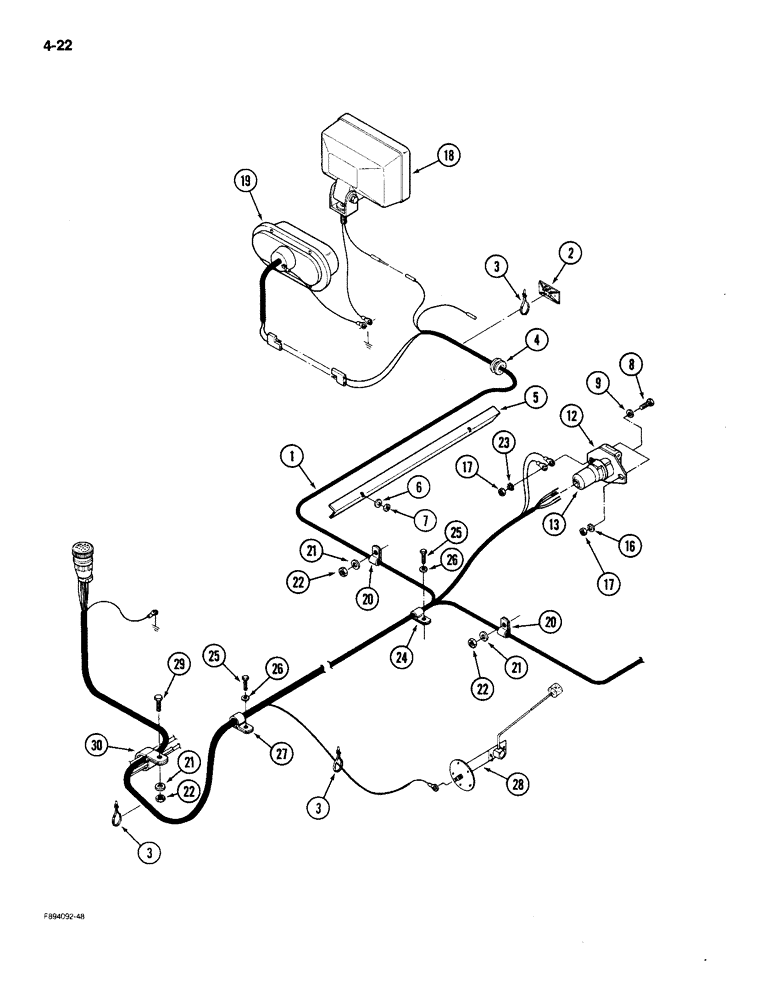

Запчасти Case IH 9150 (4-22) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6099T2

HARNESS

ASSEMBLY - rear frame

1шт.

2

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

4

31-2242

GROMMET

- protective

2шт.

5

51-366

PROTECTOR

GUARD - wire

2шт.

6

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

A145795

CONNECTOR, ELEC

CONNECTOR - socket

1шт.

13

22-790

COVER

BOOT - rubber

1шт.

16

19-116

LOCK WASHER,5/16"

5/16"

2шт.

17

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

REF

INSTRUCTION

LAMP ASSEMBLY - field (See Figure 4-36)

2шт.

19

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-36)

2шт.

20

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

21

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

24

31-2488

CLAMP

- retaining

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

27

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

28

REF

INSTRUCTION

SENDER - fuel (See Figure 3-4)

1шт.

29

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

30

31-1427

MOUNTING CLIP

CLAMP - harness, retaining

1шт.
