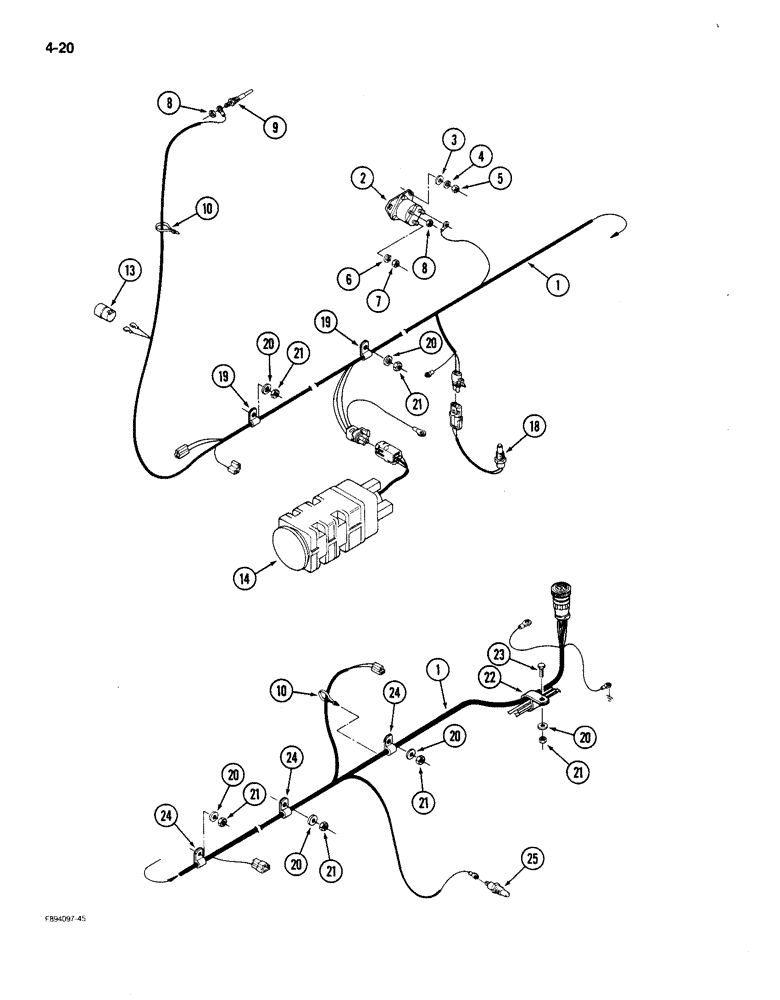

Запчасти Case IH 9150 (4-20) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6101T2

HARNESS

ASSEMBLY - front frame

1шт.

2

A39079

SOLENOID

- magnetic

1шт.

3

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

4

19-115

LOCK WASHER,1/4"

1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

6

19-116

LOCK WASHER,5/16"

5/16"

2шт.

7

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

19-481

SERRATED NUT

- keps, No. 10 NF

2шт.

9

A145513

SENSOR

- level, coolant

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

13

A172784

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

14

REF

INSTRUCTION

SENSOR - speed, ground (See Figure 4-60)

1шт.

18

1964538C1

SWITCH

- temperature

1шт.

19

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

20

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

22

31-1427

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

31-2488

CLAMP

- retaining

3шт.

25

20-1989T1

SWITCH

- temperature

1шт.
