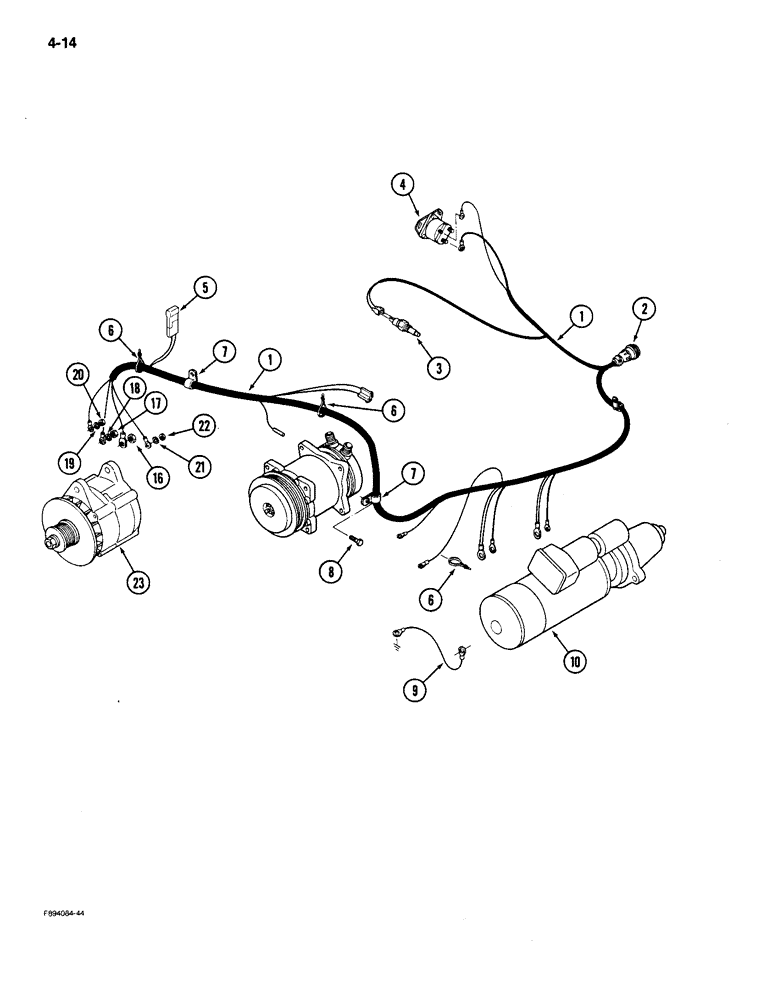

Запчасти Case IH 9150 (4-14) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6104T2

HARNESS

ASSEMBLY - engine, Includes: Ref. 2

1шт.

60-6639T1 Diode Receptical Connector

1шт.

60-6638T1, 14 Pin Male Plug for the Harness.

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

20-1676T1

SWITCH

- temperature, sender

1шт.

4

REF

INSTRUCTION

SWITCH - magnetic (See Figure 4-20)

1шт.

5

60-6251T1

DIODE

- electrical

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

7

31-2488

CLAMP

- retaining

2шт.

8

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

1шт.

9

20-2164T1

HARNESS

WIRE - ground, starter

1шт.

10

REF

INSTRUCTION

STARTER - engine (See Figure 4-30 and 4-30)

1шт.

16

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

17

40-1229

NUT,M6, Cl 8

- hex, 6 mm

1шт.

18

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

19

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, 5 mm, external tooth

1шт.

20

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

1шт.

21

19-602

LOCK WASHER,Ext, #8

NUT - hex, lock, 5/16 inch NC

1шт.

22

825-1104

NUT,M4, Cl 8

- hex, 4 mm

1шт.

23

REF

INSTRUCTION

ALTERNATOR - engine (See Figure 4-34)

1шт.
