Запчасти Case IH 9150 (4-12) - SYSTEMS CIRCUIT BREAKERS AND SOLENOIDS (04) - ELECTRICAL SYSTEMS

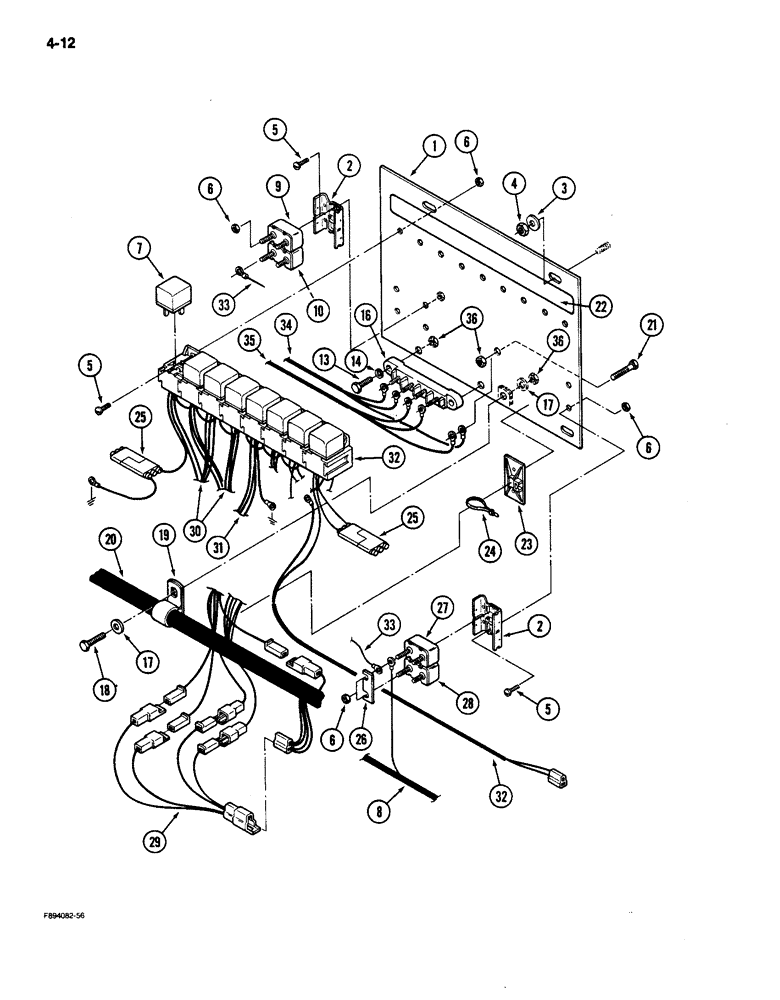

Схема запчастей Case IH 9150 - (4-12) - SYSTEMS CIRCUIT BREAKERS AND SOLENOIDS (04) - ELECTRICAL SYSTEMS
34
13
8
32
6
22
6
10
33
16
20
5
25
2
5
5
21
4
32
26
14
35
6
6
30
24
33
3
17
25
27
19
31
9
36
36
29
1
7
17
28
23
2

Артикул

Название

Примечание

Количество

1

60-5052T2

LARGE PLATE

PLATE - relay mounting

1шт.

2

20-1171T1

SUPPORT

BRACKET - mounting, circuit breaker

3шт.

3

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

3шт.

4

19-508

LOCK NUT

- hex lock, 5/16 inch NC

3шт.

5

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan, No. 10 NC x 1-1/2 inch

1шт.

6

19-481

SERRATED NUT

- keps, No. 10 NF

1шт.

7

1-7877

RELAY

- electrical, non-sealed

1шт.

7

20-2133T1

RELAY

- electrical, sealed

1шт.

8

REF

INSTRUCTION

HARNESS - overhead power (See Figure 4-2)

1шт.

9

22-809

BREAKER

CIRCUIT BREAKER - 5 ampere

1шт.

10

245765C1

CIRCUIT-BREAKER,30A

CIRCUIT BREAKER - 30 ampere

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

19-115

LOCK WASHER,1/4"

1/4"

2шт.

16

20-1514T1

JUNCTION

BLOCK - electrical

1шт.

17

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

18

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

19

31-1348

CLAMP

- retaining

1шт.

20

REF

INSTRUCTION

HARNESS - main cab (See Figure 4-2)

1шт.

21

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

- machine, keps, 1/4 NC x 1-1/4 inch

1шт.

22

60-5053T2

DECAL

- relay

1шт.

23

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

25

22-738

DIODE

- electrical

1шт.

26

22-677

BAR

CONNECTOR - circuit breaker

1шт.

27

22-670

BREAKER

CIRCUIT BREAKER - 10 ampere

2шт.

28

22-671

BREAKER

CIRCUIT BREAKER - 15 ampere

1шт.

29

20-1986T1

HARNESS

- jumper

1шт.

30

20-1933T1

HARNESS

- relay, differential

2шт.

31

20-2336T1

HARNESS

- relay, 3-point

1шт.

32

60-6162T1

HARNESS

- air seat

1шт.

33

60-6303T1

ELECTRICAL WIRE

WIRE ASSEMBLY - circuit breaker

1шт.

34

20-2356T1

HARNESS

- front differential

1шт.

35

20-2303T1

HARNESS

- rear differential

1шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

Выбрано товаров: 34
