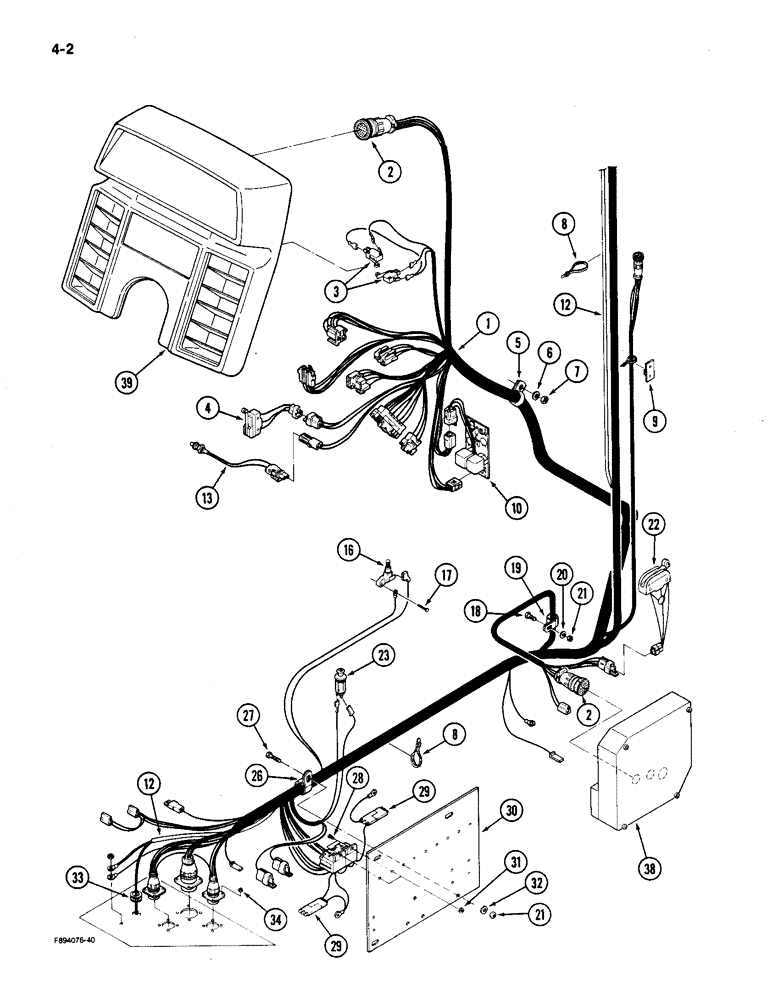

Запчасти Case IH 9150 (4-02) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6088T2

HARNESS

ASSEMBLY - main cab, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch (See Figure 9-94)

2шт.

4

20-2340T91

IGNITION SWITCH

SWITCH ASSEMBLY - micro, fan or compressor clutch (Order 20-2333T1 switch and 60-2666T1 wire) (See Figure 6-44)

1шт.

5

308576R1

CLAMP

- retaining

1шт.

6

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

9

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

10

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-58)

1шт.

12

60-6300T1

HARNESS

ASSEMBLY - overhead power

1шт.

13

60-6027T1

SENSOR

ASSEMBLY - proximity (See Figure 6-38)

1шт.

16

20-2316T1

SWITCH

- park brake (See Figure 7-4)

1шт.

17

19-6216

SCREW - tapping, hex, No. 8 NC x 1 inch

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

32-161

COLLAR CLAMP

CLAMP - retaining

1шт.

20

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

1шт.

21

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

22

60-6059T91

IGNITION SWITCH

SWITCH - mode lever (See Figure 6-34)

1шт.

23

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar, 12 volt

1шт.

26

31-1348

CLAMP

- retaining

1шт.

27

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head, No. 10 NF x 1/2 inch

2шт.

29

22-738

DIODE

- electrical

2шт.

30

REF

INSTRUCTION

PLATE - relay mounting (See Figure 4-12)

1шт.

31

19-481

SERRATED NUT

- keps, No. 10 NF

2шт.

32

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

33

22-766

GROMMET

- protective

1шт.

34

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

38

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission (See Figure 6-32)

1шт.

39

REF

INSTRUCTION

DASH ASSEMBLY - instrument (See Figures 4-24 and 9-74)

1шт.
