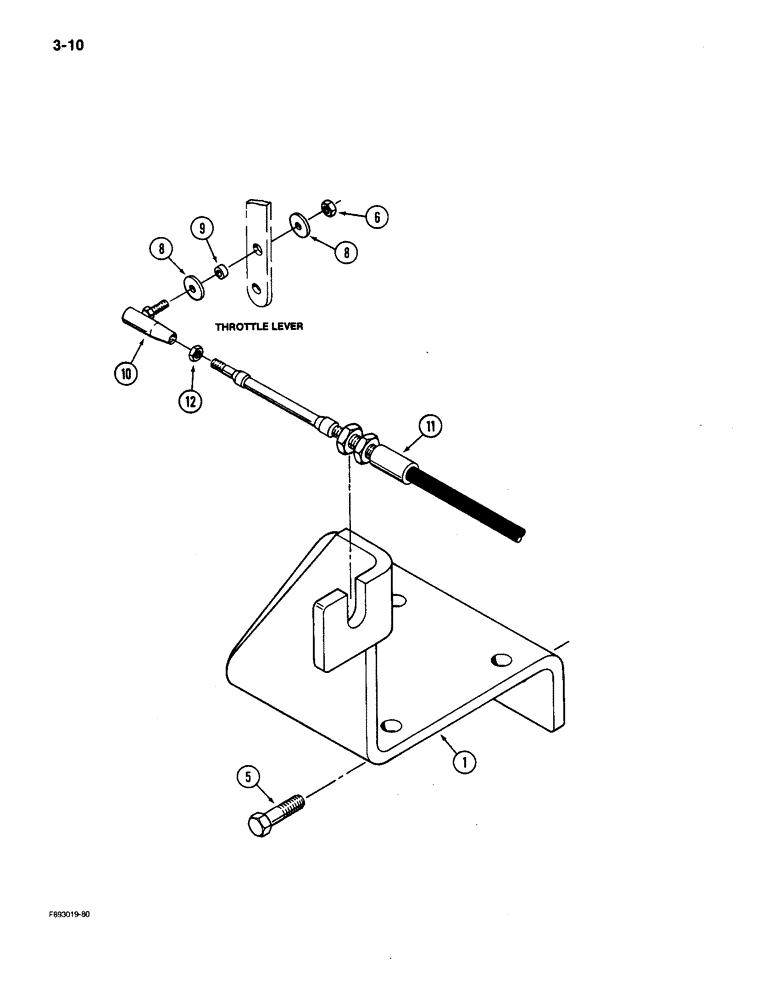

Запчасти Case IH 9150 (3-10) - THROTTLE CONTROLS, ENGINE ATTACHING (03) - FUEL SYSTEM

1

90-5849T2

BRACKET

- throttle cable

1шт.

5

40-1093

BOLT,Hex, M10 x 1.5 x 30mm, Gr 8.8

BOLT - hex, 10 x 30 mm

2шт.

6

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

8

19-699

WASHER,3/16"

- flat, 1/4 inch

2шт.

9

90-4150T1

BUSHING

- pivot

1шт.

10

A75447

BALL JOINT

JOINT - ball, throttle

1шт.

11

60-3703T1

CABLE

- throttle, cab

1шт.

11

60-5759T1

CABLE

- throttle, ROPS

1шт.

12

9411893

LOCK NUT,#10-32, GB

NUT - hex, No. 10 NF (Replaces 19-308)

1шт.

Replaced by 9411893 Nylon Lock Nut

1шт.
