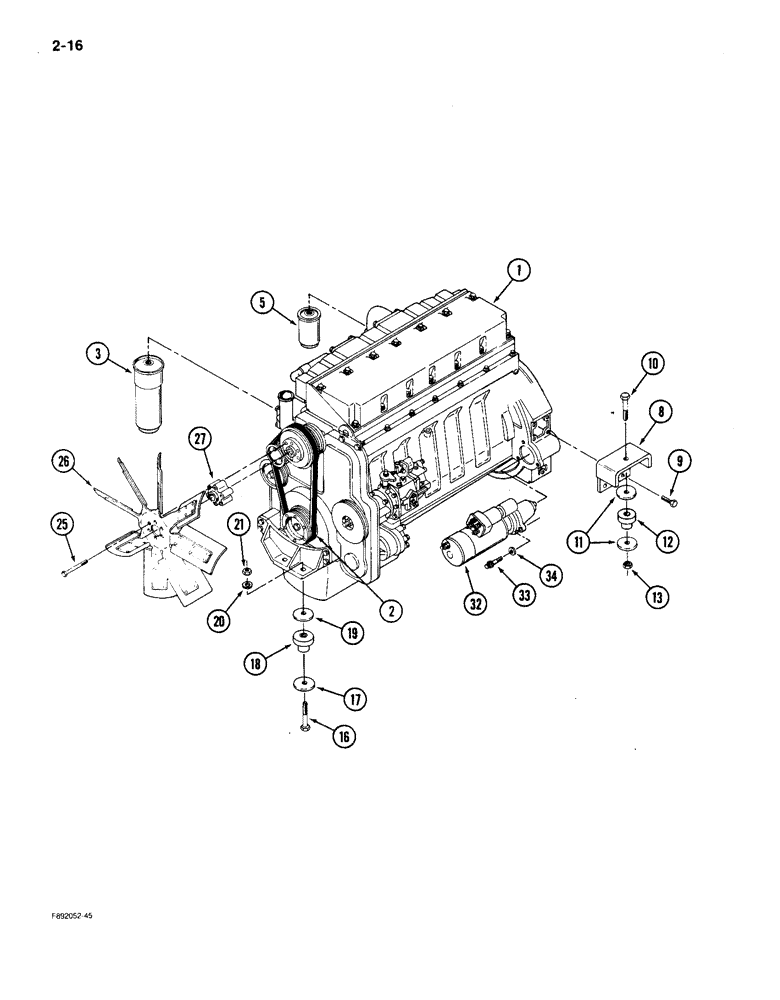

Запчасти Case IH 9150 (2-16) - ENGINE MOUNTING (02) - ENGINE

1

90-7067T91

ENGINE ASSEMBLY

ENGINE - LTA 10A, 280 horsepower, Includes: Ref. 2 and 3

1шт.

2

33-1304T1

BELT

- ribbed, V, fan drive

1шт.

3

90-7101T1

FILTER, ENGINE OIL

ELEMENT - filter, oil

1шт.

5

A77544

FILTER

- coolant conditioner, service

1шт.

5

A77659

FILTER

- coolant conditioner, precharged

1шт.

8

70-4736T1

MOUNTING PARTS

MOUNT - engine, left

1шт.

8

70-4737T1

MOUNTING PARTS

MOUNT - engine, right

1шт.

9

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch, Grade 8

8шт.

10

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

11

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-3/4 x 3/16 inch

4шт.

12

47-4172

SHOCK ABSORBER

MOUNT - isolator, rubber

2шт.

13

19-85

LOCK NUT

- hex, lock, 3/4 inch NC

2шт.

16

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

17

19-408

WASHER

- flat, 5/8 inch

2шт.

18

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber

2шт.

19

51-128

WASHER

- flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

20

67872C1

WASHER

- flat, hardened, 5/8 x 1-1/4 x 1/4 inch

2шт.

21

19-222

LOCK NUT,5/8" - 11, GB

NUT - hex, lock, 5/8 inch NC

2шт.

25

19-671

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch

6шт.

26

90-4672T1

FAN

- engine

1шт.

27

90-3638T1

SPACER

- fan

1шт.

32

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-30)

1шт.

33

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, Grade 8

2шт.

34

19-912

WASHER

- flat, 5/8 inch

3шт.

90-6850T1

V-BELT,0.14" W x 33.50" L, 5 Ribs

Alternator 0.14" W x 33.50" L, 5 Ribs

1шт.
